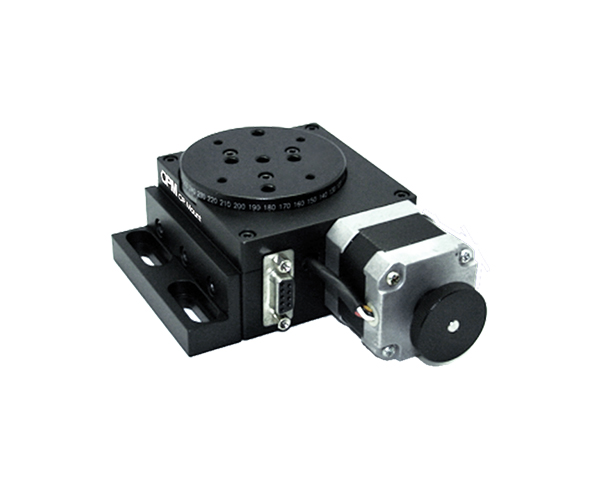

Motorized Rotation Stages
Stage Size :
Ø 66 mm
Aperture :
None
Reduction ratio :
Worm gear(1:90)
Material : Aluminum / Copper
5 Phase Stepping Motor
2D drawing :  3D STEP :

weight : 1.5KG  Delivery : Inquiry

Price:US$1120.69

Qty:

  Part Number M-5-MR-66  PDF
  Stage Size (mm) Ø 66
  Aperture (mm) None
  Reduction ratio Worm gear(1:90)
  Material Aluminum / Copper
  Weight 1.5Kg
  Resolution  (Full)   [°/pulse] 0.008
 (Half)   [°/pulse] 0.004
 (20000)   [°/pulse] 0.0002
  Max Speed  [ ° /sec ] 45
  Positioning Accuracy[ ° ] 0.1
  Positioning Repeatability[ ° ] + /-0.05
  Load Capacity[ N ] 49 ( 5.0 Kgf )
  Limit  Sensor( - pulse  direction ) Photoelectric Sensor ( NPN ) ; CCW direction stop at near 0 degree ; CW direction to  ∞
  Origin Sensor Photoelectric Sensor  ( NPN )
  Sensor  Volatage DC 5V - DC 24 V
 Current 15mA or less
 Control Output NPN Open Collector Transistor /Output DC 30V , 50mA or less
  Motor  Type 5 - phase stepping motor
 Step Angle 0.72 °
(For use with CTC-5- __ - __ 200 Series Controllers)

No.1

M-5-MR-66

PDF

No.2

M-5-MR-66

STEP
