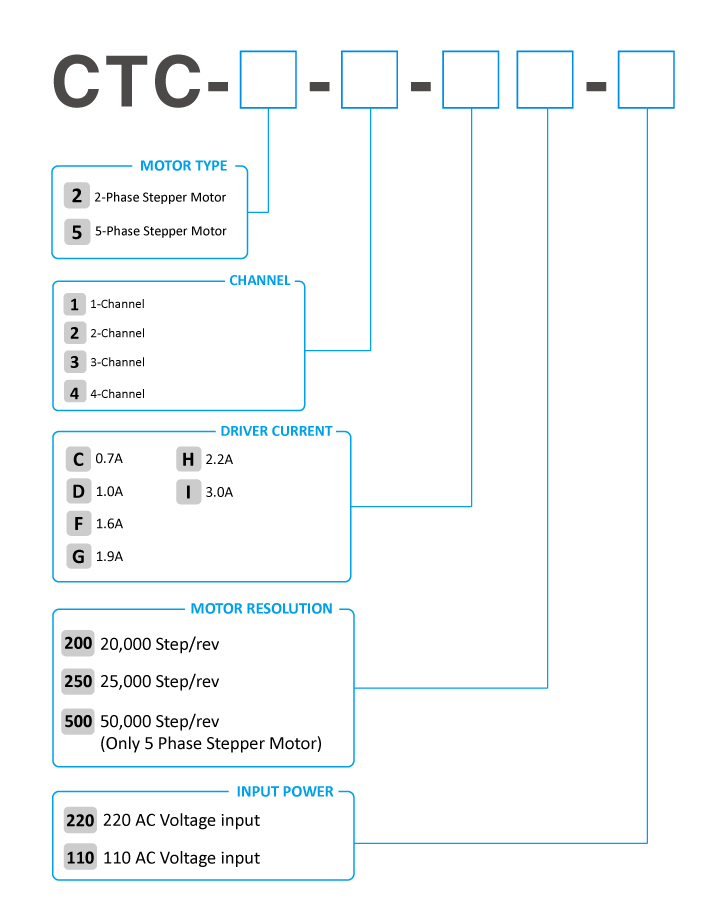

Model Definition



Download

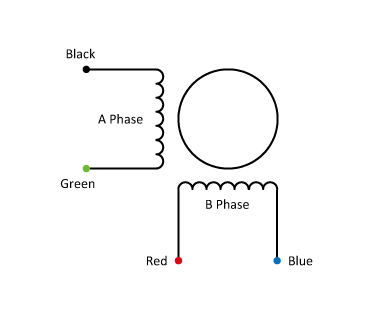

2-Phase Closed Loop Stepper Motor System

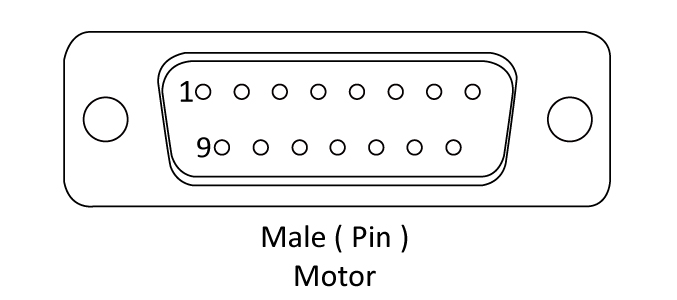

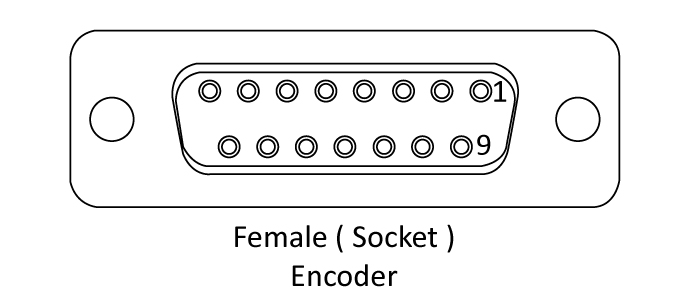

Pin Diagrams



Male Description Female Description
Pin
 Description Pin Description Pin Description Pin Description
1
 Home(output 0V NPN) 10 - 1 - 10 -
2
 GND 11 - 2 - 11 -
3
Forward Limit Switch
(output 0V NPN)
 12 - 3 - 12 Encoder Z+
4
Reverse Limit Switch
(output 0V NPN)
 13 - 4 Encoder Z- 13 Encoder B+
5
 Vcc +(24 VDC) 14 - 5 Encoder B- 14 Encoder A+
6 2 Phase Motor B+ 15

6 Encoder A- 15 -
7 2 Phase Motor B-   7 -   -
8 2 Phase Motor A-   8 5V   -
9 2 Phase Motor A+   9 0V   -

Part No. Deadline Price Quantity Cart
CTC-2-1-F200-110

1-Channel /2 Phase Closed-loop Stepper motor Controller/Resolution:20000 /110V

Inquiry
US$1672.41
CTC-2-2-F200-110

2-Channel /2 Phase Closed-loop Stepper motor Controller/Resolution:20000 /110V

Inquiry
US$2017.24
CTC-2-3-F200-110

3-Channel /2 Phase Closed-loop Stepper motor Controller/Resolution:20000 /110V

Inquiry
US$2482.75
CTC-2-4-F200-110

4-Channel /2 Phase Closed-loop Stepper motor Controller/Resolution:20000 /110V

Inquiry
US$2793.10
