Probe Adjustment Stage

 • Suitable LED、MEMS、MOSFET、Diode、GaAs  measurement application)

 • Right-Hand / Left-Hand  Version

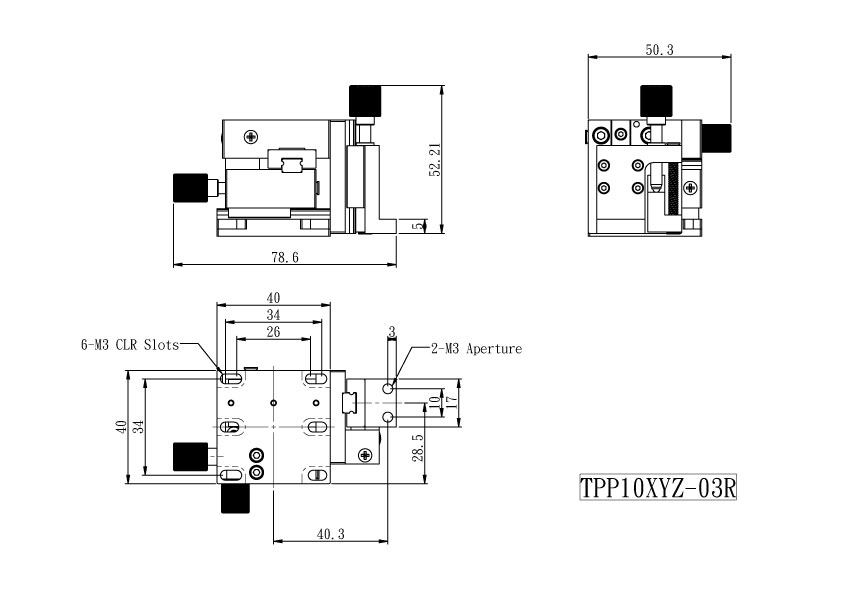

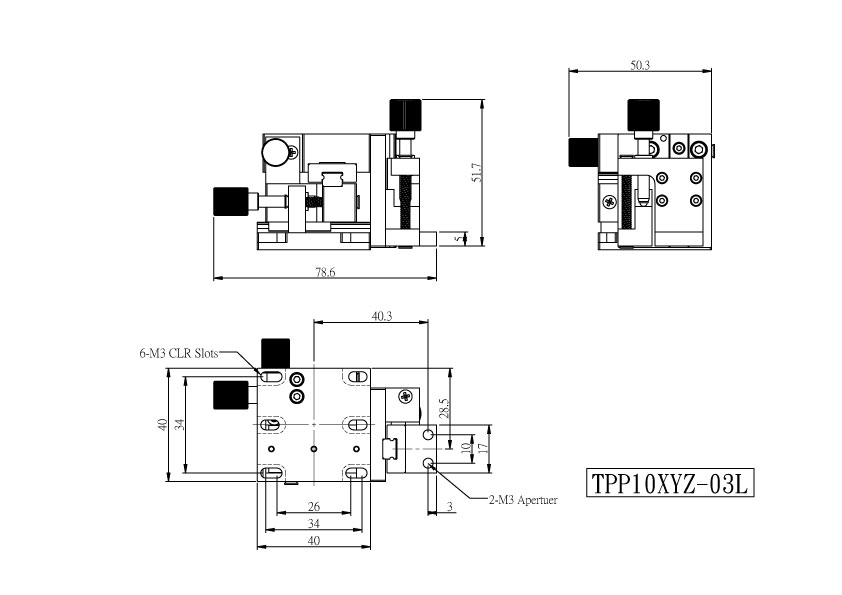

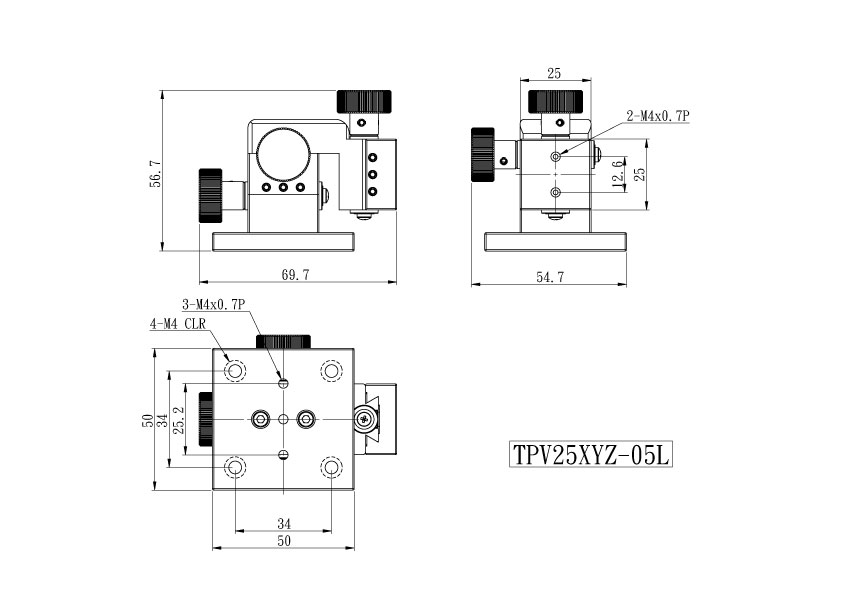

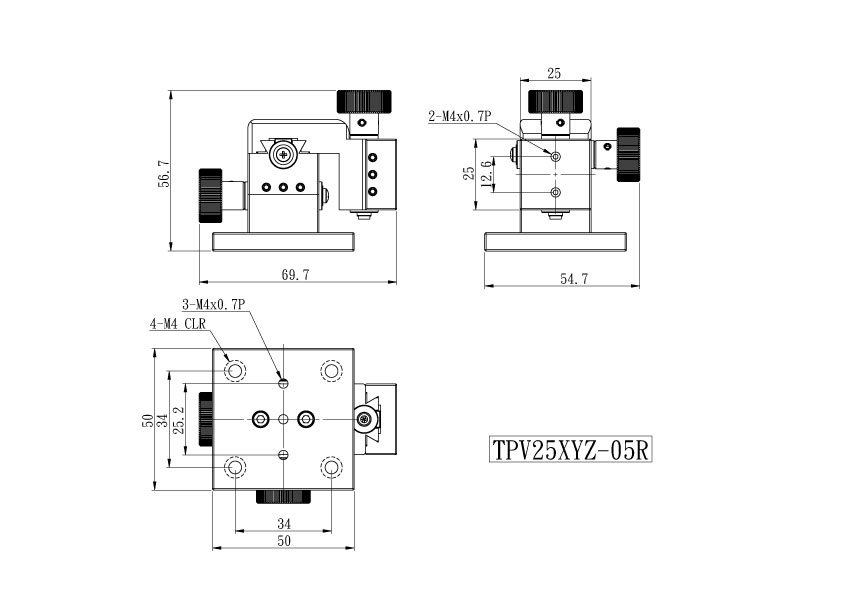

2D-Drawing


Specification
Item Number: M-TPP10XYZ-03 TPV25XYZ-05
Travel : ±4.5mm 10mm
Axis : XYZ XYZ
track : Ball Guide Dovetail
Straightness : ±2um +/- 15um
Parallelism : ±5um +/- 20um



Part No. Deadline Price Quantity Cart
M-TPP10XYZ-03L

Probe Adjustment Stages / Prepressing Steel Guides / Travel 10 mm / Left-Hand

In Stock
US$433.33
M-TPP10XYZ-03R

Probe Adjustment Stages / Prepressing Steel Guides / Travel 10 mm / Right-Hand

In Stock
US$433.33
TPV25XYZ-05R

Probe Adjustment Stages / Compact Dove Linear stage /Travel range 10mm / Right-Hand

In Stock
US$248.28
TPV25XYZ-05L

Probe Adjustment Stages / Compact Dove Linear stage /Travel range 10mm / Left-Hand

In Stock
US$248.28
