Specification

• Optics Diameter : Ø1"

• Adjustable range : 360° of Continuous Rotation

• Resolution : 2°

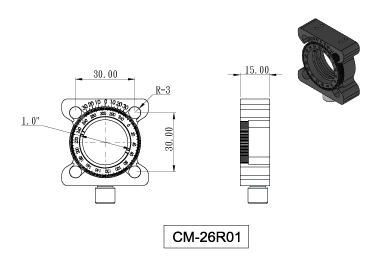

2D-Drawing

Click to Enlarge

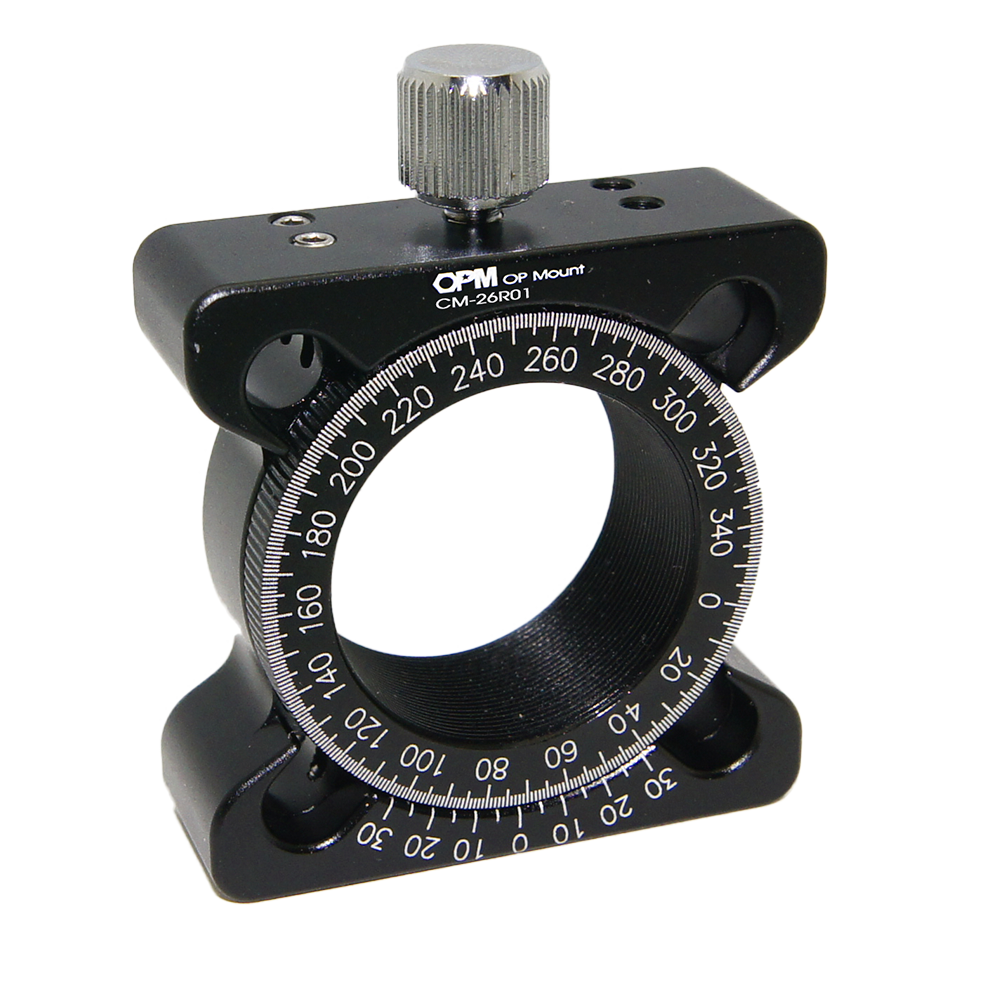

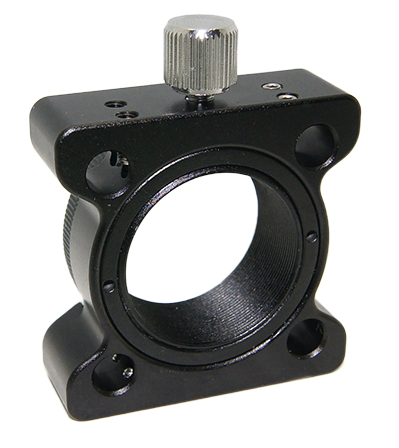

Ø1" Cage Rotation Mount

CM-26R01

The CM-26R series can rotate continuously through 360 degrees. After confirming the rotation angle, the rotation angle can be fixed using the screws on the side, making it suitable for placing directional optical components such as polarizers, wave plates, and targets.
