2D-Drawing

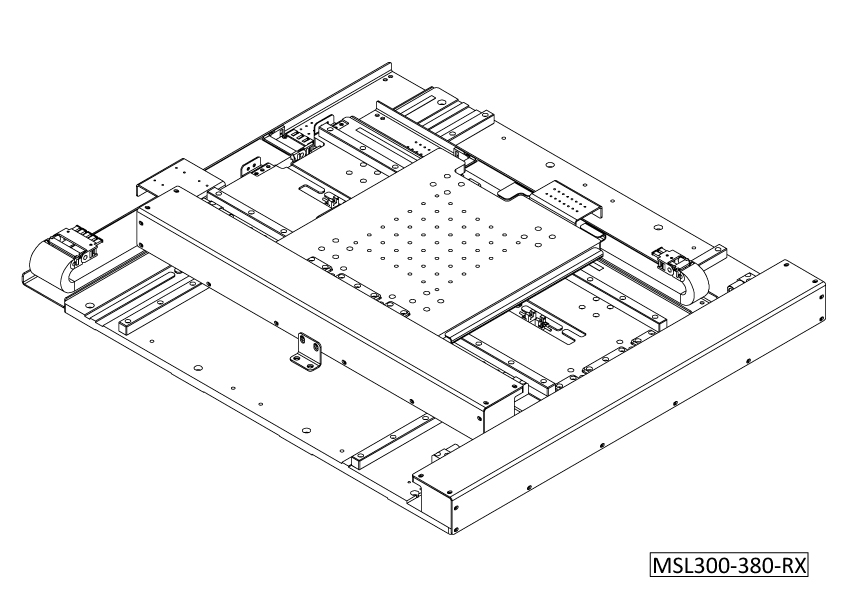

MSL300-380

► Ironless Linear Motor Drive with Excellent positioning accuracy, fast speed, zero backlash without stumble.
► 0.1um resolution or 1.0um resolution is optional
► Thin design stage with low center of gravity and high stability.
► Made of solid aluminum alloy with high rigidity.
► Applicable to optical inspection.



Specifications
Compare MSL300-380-R01 MSL300-380-R10
Travel 380 mm X 380 mm
Resolution  0.1um 1um
Repeatability +/- 0.3um +/- 3um
Loading 20Kg
Peak Force 521 N @120°C
Continuous Force 104 N @120°C
Price contact us



Part No. Deadline Price Quantity Cart
MSL300-380-R01

XY-Linear Motor Stage / 380mmx380mm Travel Range / 0.1um resolution

Inquiry
US$ Inquiry
MSL300-380-R10

XY-Linear Motor Stage / 380mmx380mm Travel Range / 1um resolution

Inquiry
US$ Inquiry
