Overview

Up to 40N，loading for linear type 1.5N for vertical type

Travel range: 28 to 44 mm for linear type; 10 mm for vertical type

100nm / 1nm Resolution

The performance data is veriﬁed by the triple beam interferom-eter for providing the best quality of the measuring result.

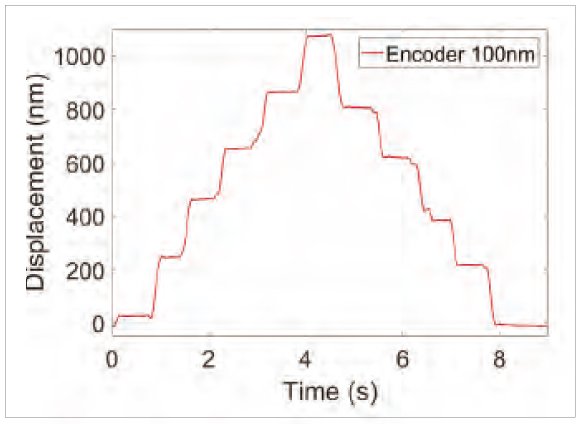

Motion performance

Click to Enlarge

Mechanical Properties
Model number	MMPX42-28A100	MMPX52-36A100	MMPX62-44A100	MMPZ42-10A100
Travel range (mm)	28mm	36mm	44mm	10mm
Dimension L, W, H (mm)	42x42x15mm	52x52x15mm	62x62x15mm	42x42x37mm
Guide Type	Crossed roller bearings
Material	Anodized aluminum as standard; Stainless steel
Weight (g)	53	85	130	165
Allowable Load	4kg			150g
Allowable Axis Load	150 g
Pitch / Yaw	±200 µrad/ ±100 µrad
Maximum Speed	10 mm/s
Encoder Resolution	100 nm
Min. incremental motion	300 nm
Bidirectional repeatability	500 nm
Home function	yes
Limit function	yes

Products	Part No.	Deadline	Price	Quantity	Cart
	MMPX42-28A100 100 nm resolution/Travel range (mm):28/Dimension L, W, H (mm):42x42x15	Contact us	US$1966.66		Inquiry
	MMPX52-36A100 100 nm resolution/Travel range (mm):36/Dimension L, W, H (mm):52x52x15	Contact us	US$2033.33		Inquiry
	MMPX62-44A100 100 nm resolution/Travel range (mm):44/Dimension L, W, H (mm):62x62x15	Contact us	US$2100.00		Inquiry
	MMPZ42-10A100 100 nm resolution / Travel range (mm):10 / Dimension L, W, H (mm):42x42x37	Contact us	US$1933.33		Inquiry
