Stabilized Optical Table Systems(Over 1.2 meters)

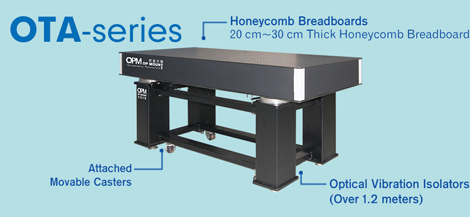

OP Mount's floating table leg structure with a pendulum system to dampen vibrations in both vertical and horizontal directions. Each support leg can bear a load of 250 kg (excluding the weight of the optical table), achieving 1.5Hz, 95% vibration isolation through a honeycomb structure, pendulum suspension, three-point leveling, and stabilizing devices.

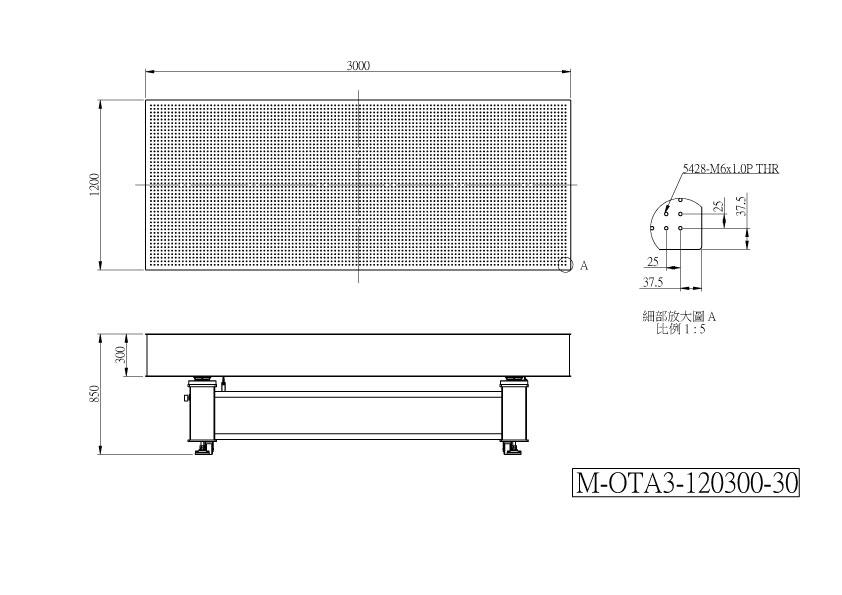

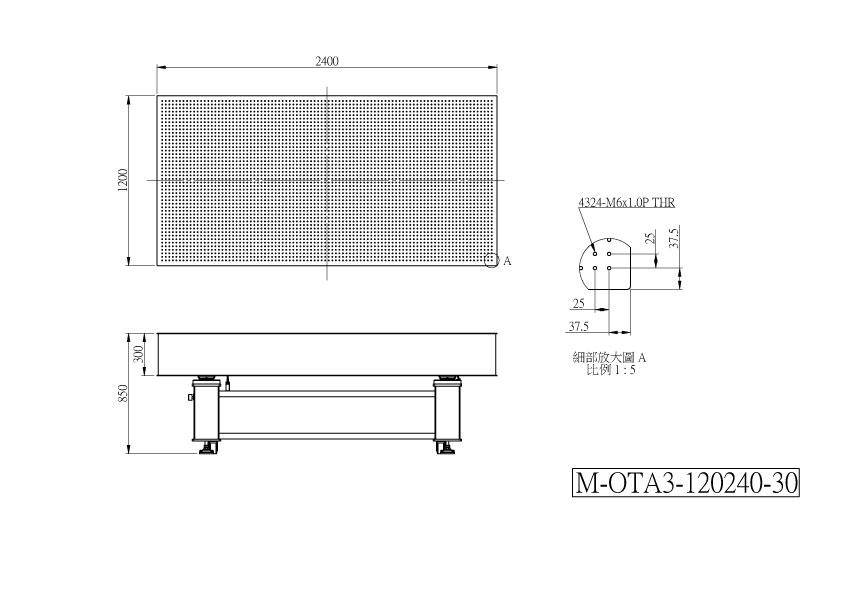

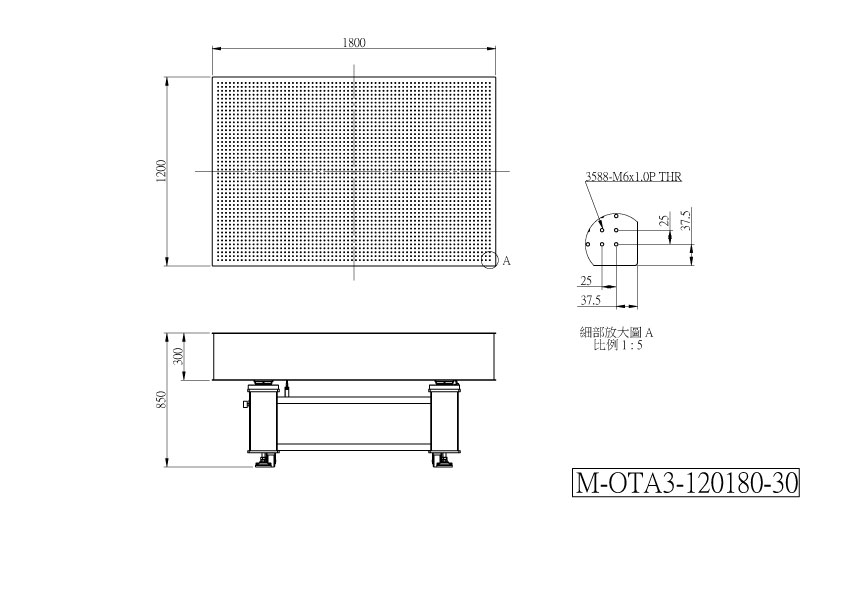

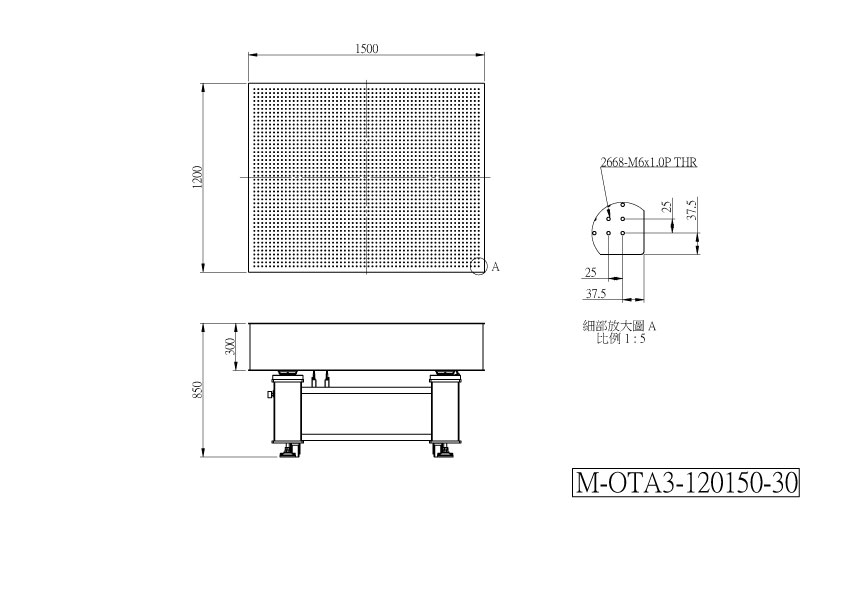

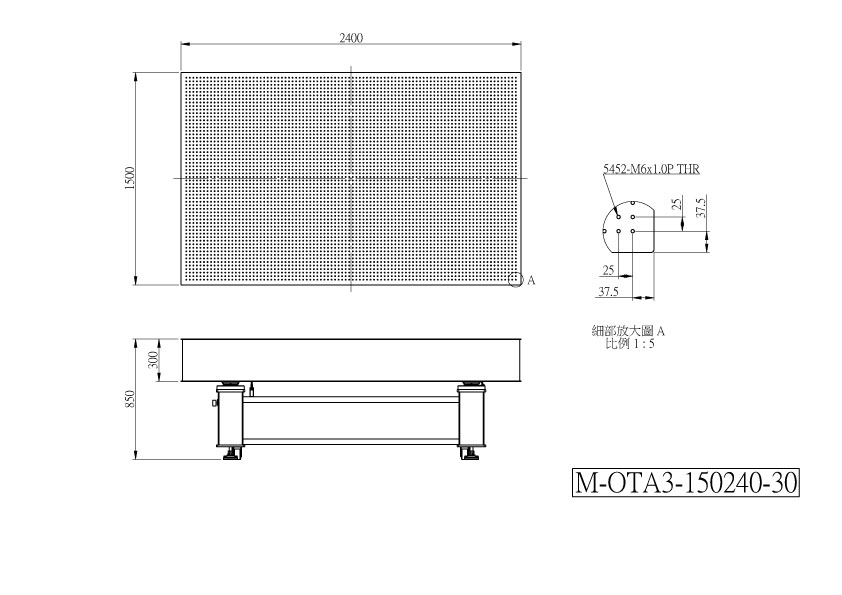

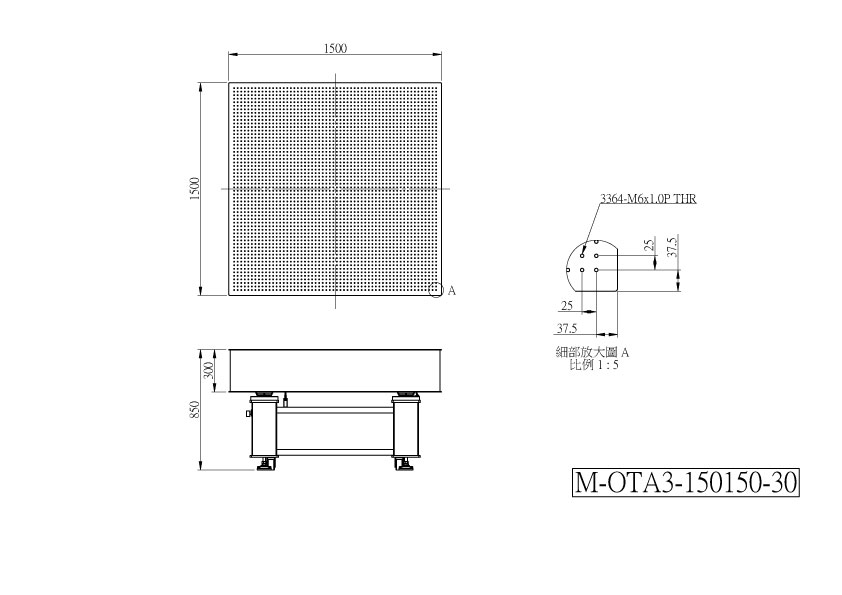

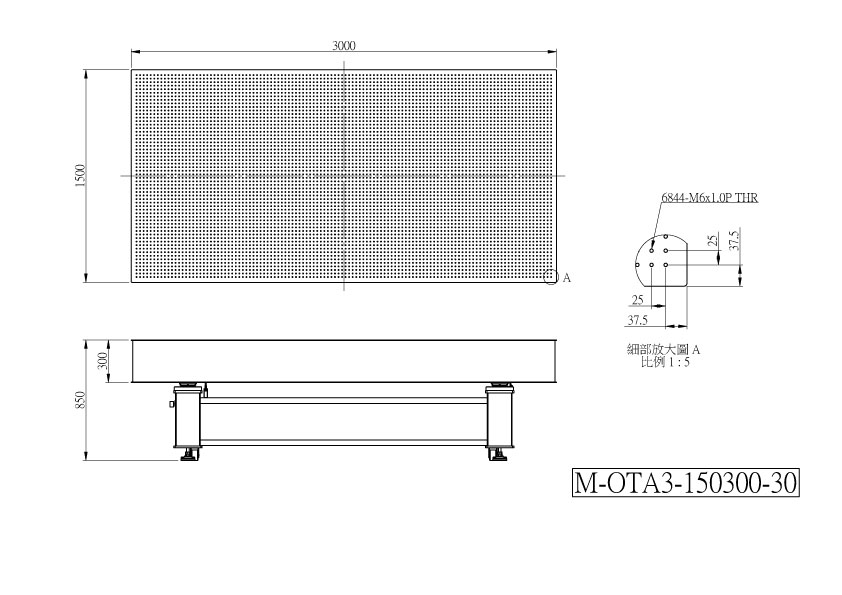

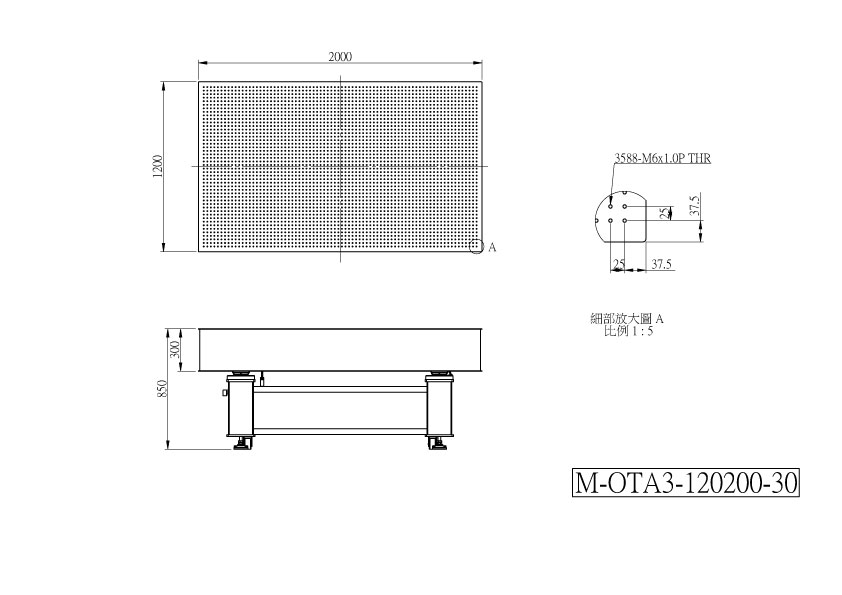

The platforms feature standard array holes M6 (1/4-20 thread), with a distance of 1.5 inches (37.5 mm) from the edge of the platform.

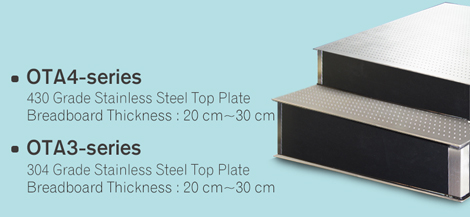

• Equipped with a 300mm thick optical honeycomb plate made of SUS304.

• Assembly structure for easy transport and installation, with attached mobile casters.

• Customizable heights available according to customer requirements.
