  6. OTA3-T20 series

Expand Model
Desktop Size
(mm)
Height
(mm)
Thicknes
(mm)

 OTA3-90120-20 900x1200 850 200

 OTA3-90150-20 900x1500 850 200

 OTA3-90180-20 900x1800 850 200

 OTA3-100200-20 1000x2000 850 200

 OTA3-120120-20 1200x1200 850 200

 OTA3-120150-20 1200x1500 850 200

 OTA3-120180-20 1200x1800 850 200

 OTA3-120200-20 1200x2000 850 200

 OTA3-120240-20 1200x2400 850 200

 OTA3-120300-20 1200x3000 850 200

 OTA3-150150-20 1500x1500 850 200

Stabilized Optical Table Systems(Over 1.2 meters)

OTA3-T20-series

OP Mount's floating table leg structure with a pendulum system to dampen vibrations in both vertical and horizontal directions. Each support leg can bear a load of 250 kg (excluding the weight of the optical table), achieving 1.5Hz, 95% vibration isolation through a honeycomb structure, pendulum suspension, three-point leveling, and stabilizing devices.

The platforms feature standard array holes M6 (1/4-20 thread), with a distance of 1.5 inches (37.5 mm) from the edge of the platform.

• Equipped with a 200mm thick optical honeycomb plate made of SUS304.

• Assembly structure for easy transport and installation, with attached mobile casters.

• Customizable heights available according to customer requirements.

Part Number/Description Delivery Price Qty. Add to Cart

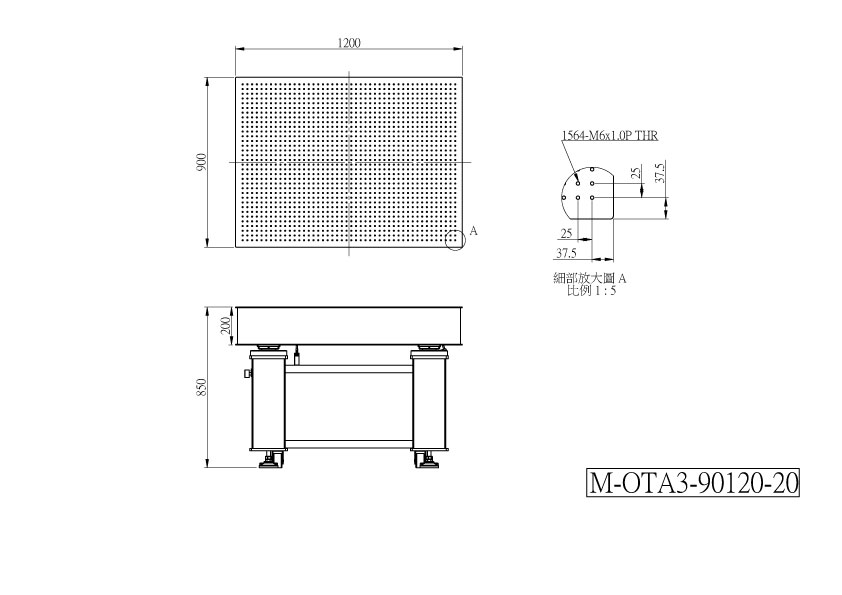

M-OTA3-90120-20

900x1200mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$5732.14

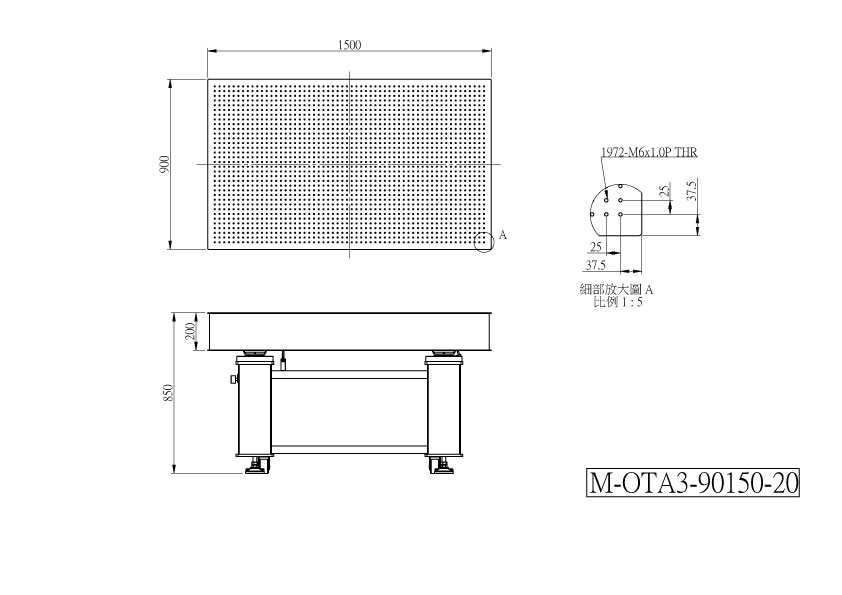

M-OTA3-90150-20

900x1500mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$6000.00

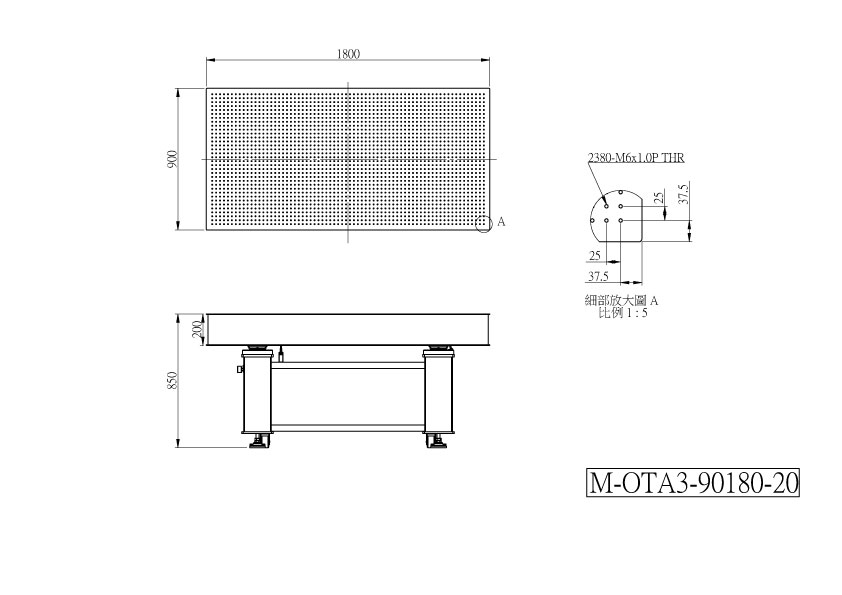

M-OTA3-90180-20

900x1800mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$6314.29

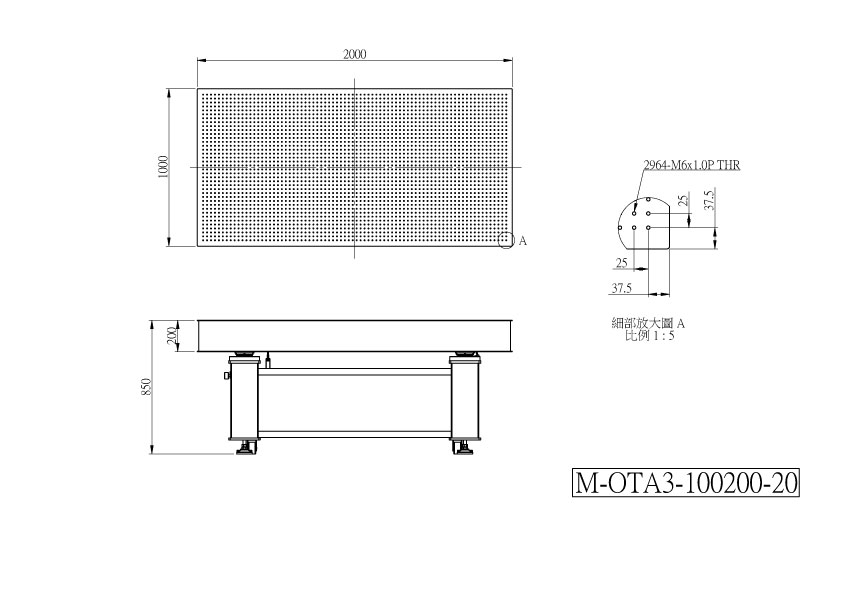

M-OTA3-100200-20

1000x2000mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$7035.71

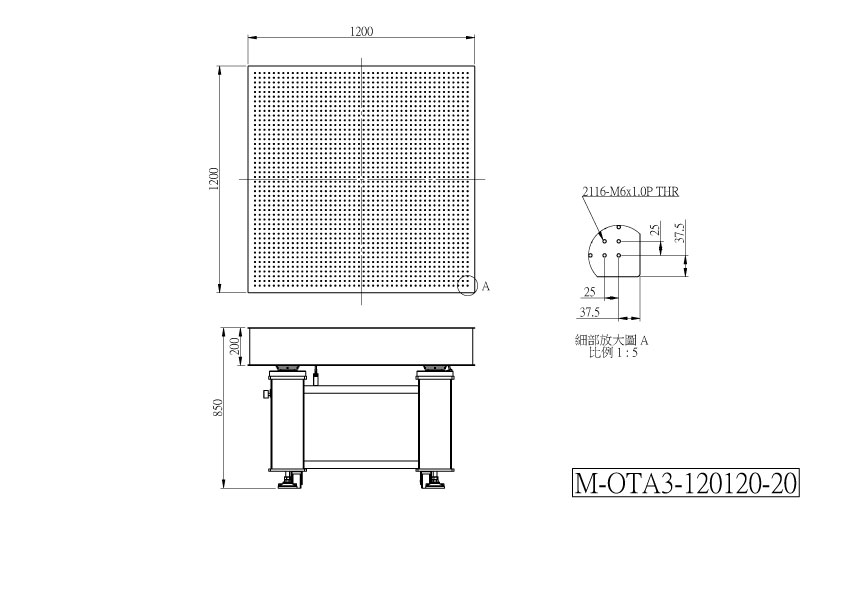

M-OTA3-120120-20

1200x1200mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$6017.86

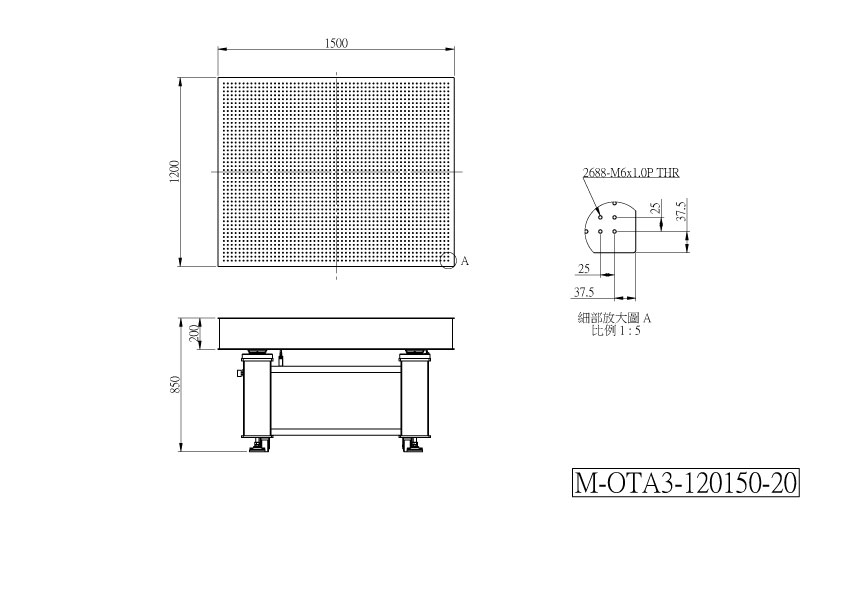

M-OTA3-120150-20

1200x1500mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$6500.00
M-OTA3-120180-20

1500x1500mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$7071.43
M-OTA3-120200-20

1200x2000mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$7350.00

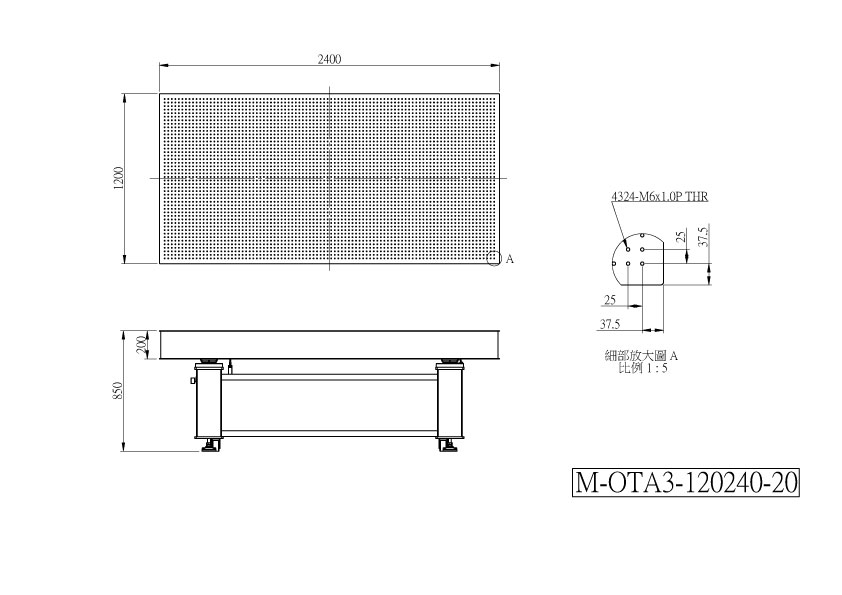

M-OTA3-120240-20

1200x2400mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$7750.00

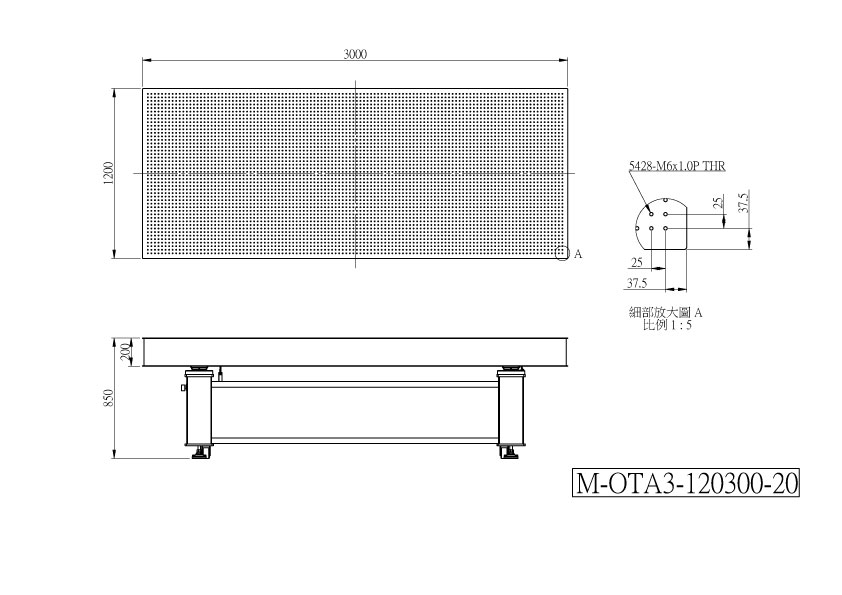

M-OTA3-120300-20

1200x3000mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$8964.29
M-OTA3-150150-20

1200x1800mm , 850mm Frame Height, 200mm thick Nonmagnetic Honeycomb Breadboard
Contact us
US$7446.43
