Expand Model
Desktop Size
(mm)
Height
(mm)
Thickness
(mm)

OTB4-4560-05 450X600 850 50

OTB4-6060-05 600X600 850 50

OTB4-6075-05 600X750 850 50

OTB4-6090-05 600X900 850 50

OTB4-60120-05 600X1200 850 50

OTB4-7590-05 750X900 850 50

Stabilized Optical Table Systems(Below 1.2 meters)

OTB4-T5-series

The OTB-series is an ideal apparatus designed for applications such as microscopy, interferometry, or confidential optics. This type of optical table, with a smaller footprint, utilizes a 100mm square tube frame coated in black spray paint, catering to various applications. Each supporting leg has a maximum load capacity of 100 kilograms (excluding the weight of the optical table), corresponding to different pressure values. Within the suitable weight range, this optical platform can effectively demonstrate its capabilities.

These platforms feature standard array holes M6 (1/4"-20 threads), with the distance between the array holes and the platform edge measuring 1.5 inches (37.5 millimeters).

• Paired with SUS430, the table features 50mm-thick optical honeycomb panels.

• The assembly structure, complete with movable casters, ensures convenient transport and installation.

• Heights can be customized according to customer needs, providing personalized options.




Part Number/Description Delivery Price Qty. Add to Cart

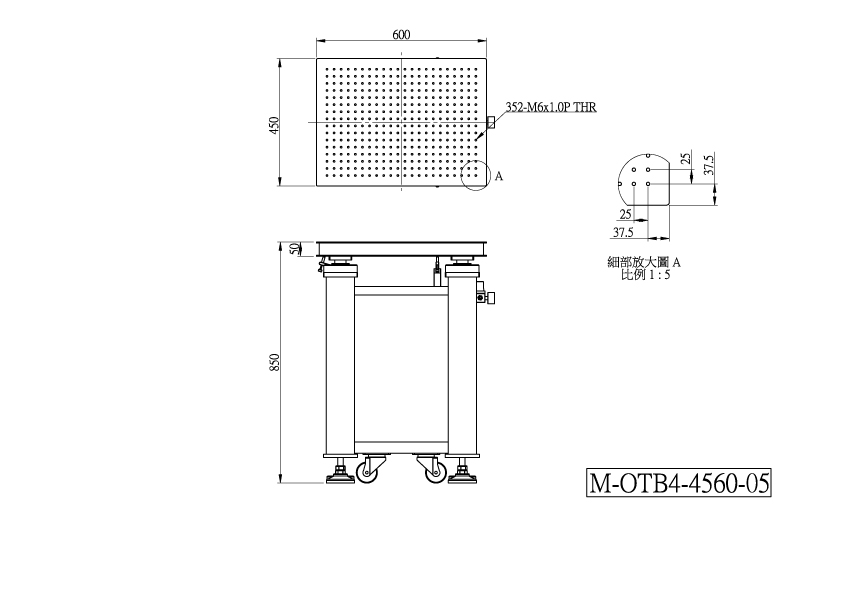

M-OTB4-4560-05

450x600mm ,850mm Frame Height, 50mm thick Honeycomb Breadboard

Delivery
US$2865.42

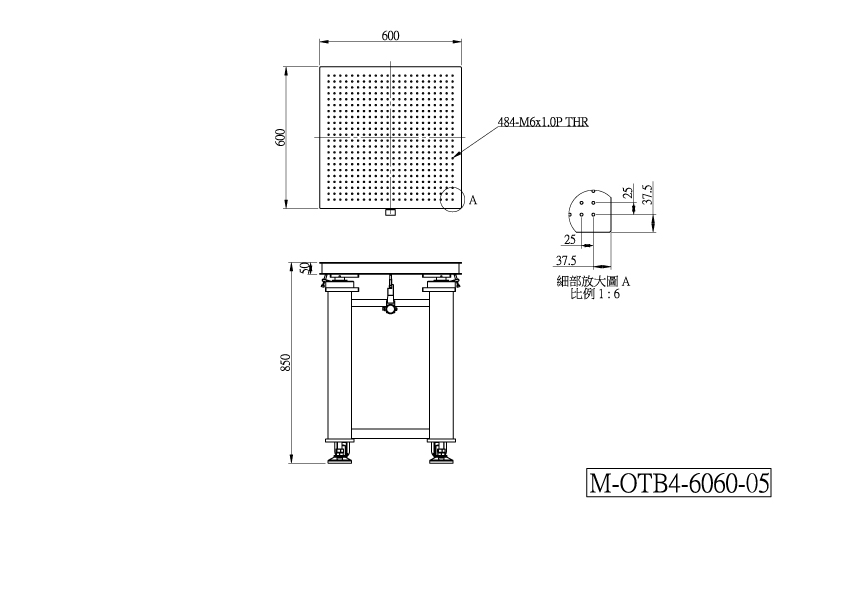

M-OTB4-6060-05

600x600mm ,850mm Frame Height, 50mm thick Honeycomb Breadboard

Delivery
US$3010.51

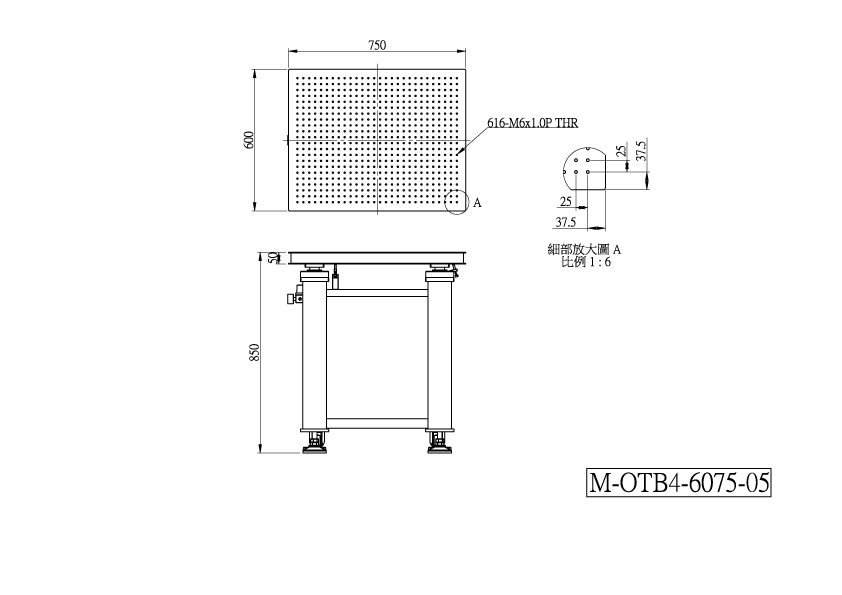

M-OTB4-6075-05

600x750mm ,850mm Frame Height, 50mm thick Honeycomb Breadboard

Delivery
US$3137.46

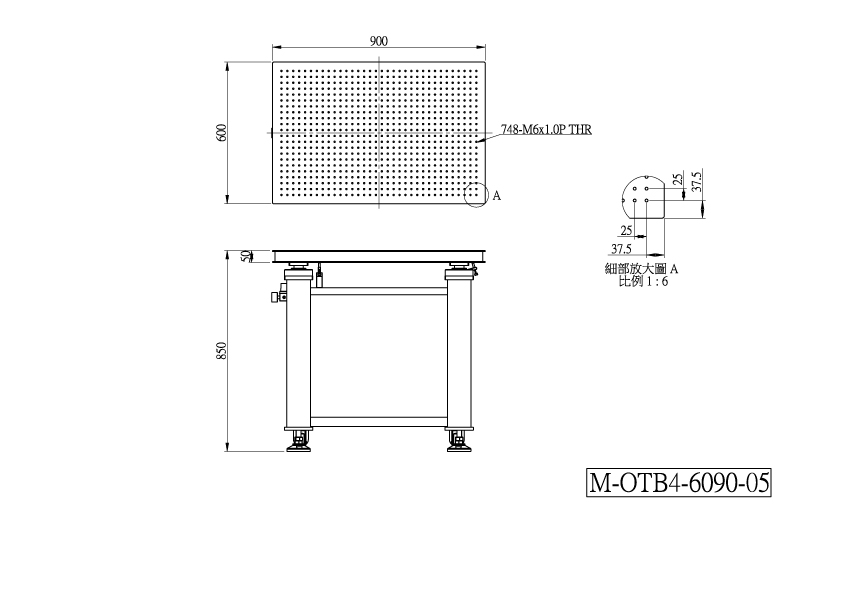

M-OTB4-6090-05

600x900mm ,850mm Frame Height, 50mm thick Honeycomb Breadboard

Delivery
US$3228.14

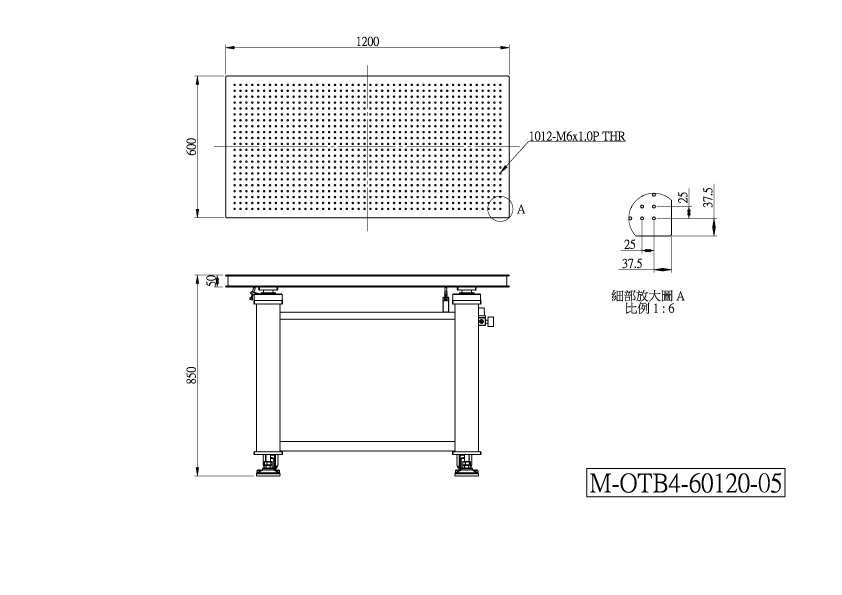

M-OTB4-60120-05

600x1200mm ,850mm Frame Height, 50mm thick Honeycomb Breadboard

Delivery
US$3663.39

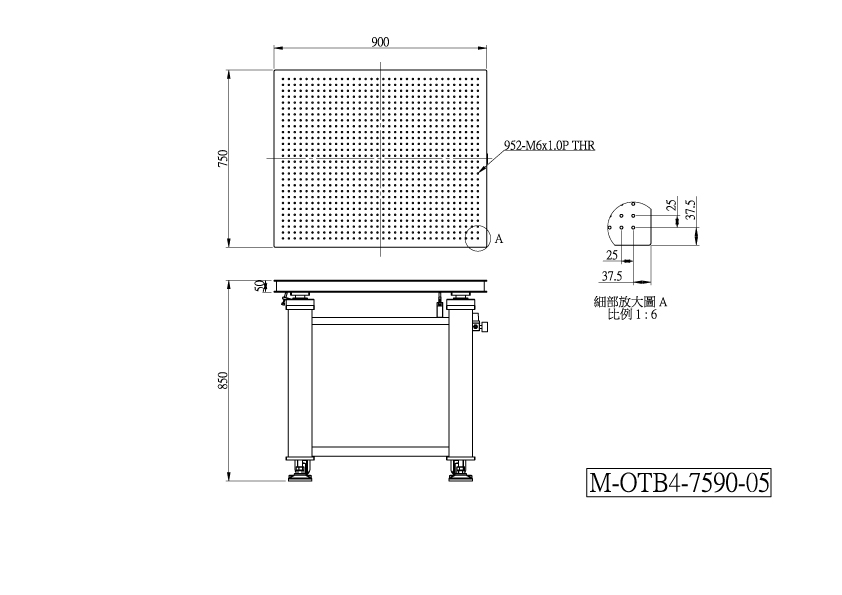

M-OTB4-7590-05

750x900mm ,850mm Frame Height, 50mm thick Honeycomb Breadboard

Delivery
US$3391.36
