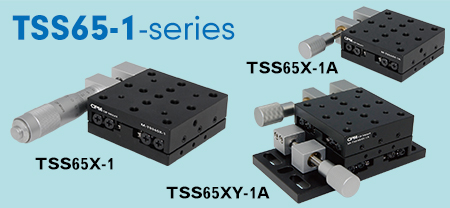

TSS65-1-series

• The TSS65 series platform employs a steel cross-roller bearing track design, characterized by high rigidity, high load capacity, low friction, and minimal operational noise. It is well-suited for applications requiring high-precision displacement. To cater to user convenience, we offer the option of two drive mechanisms: a 10um micrometer and a 100TPI precision screw.

• The one-piece design structure enables the TSS65XY platform to provide a higher demand for right angles in the XY direction.

• The XZ direction configuration can install the surface of the Z-axis platform in a straight line with the direction of travel, increasing the diversity in the mechanism layout.
Specification
 Platform Size Driver Travel Resolution Straightness Material
65 x 65mm Micrometer / 100TPI Screws Side Driver  ±6.5mm 10um ±7.5um  Aluminum 、Anodized Black





Part Number/Description Delivery Price Qty. Add to Cart

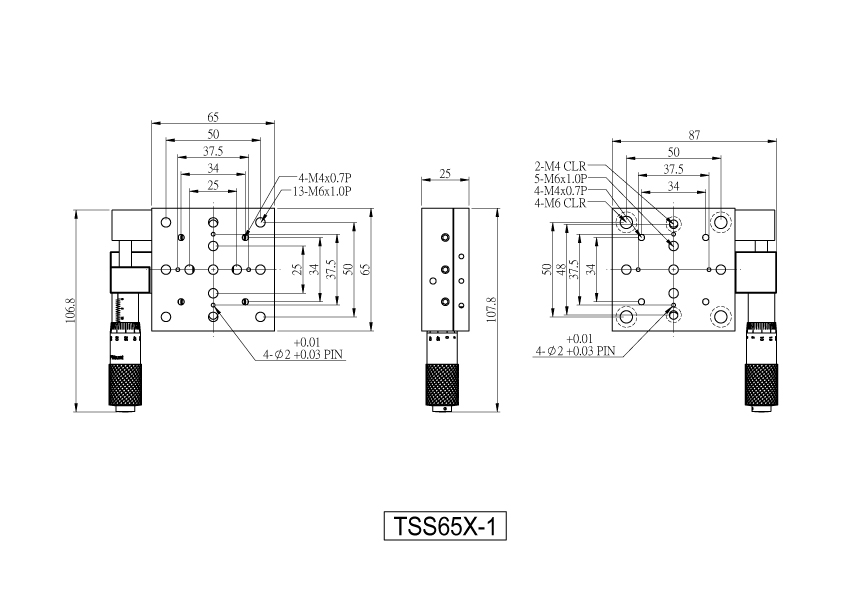

M-TSS65X-1

65mmx65mm / 25mm Travel / X-axis / Side Driver / 10um Micrometer
In Stock
US$231.03
M-TSS65X-1A

65mmx65mm / 25mm Travel / X-axis / Side Driver / 100 TPI Screws
In Stock
US$210.34
M-TSS65XY-1

65mmx65mm / 25mm Travel / XY-axis / Side Driver / 10um Micrometer
In Stock
US$462.07

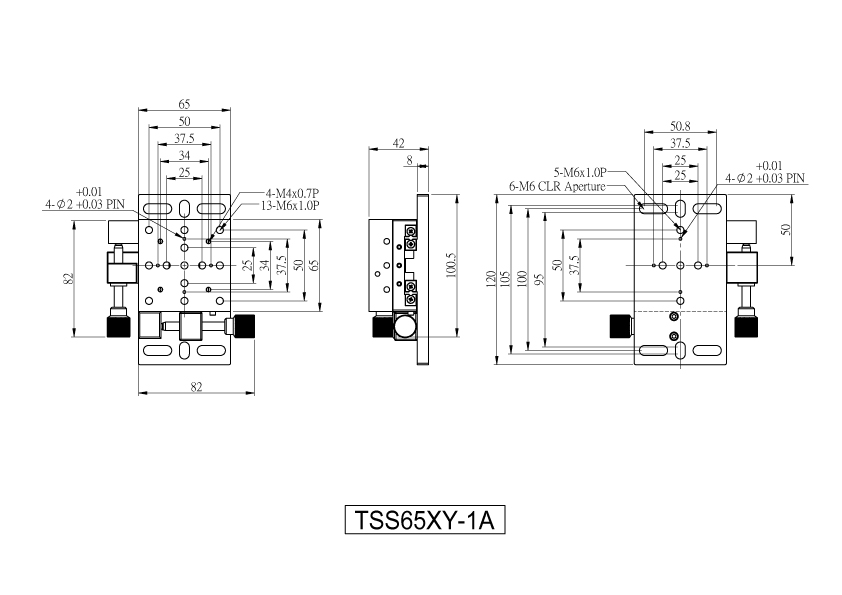

M-TSS65XY-1A

65mmx65mm / 25mm Travel / XY-axis / Side Driver / 100 TPI Screws
In Stock
US$420.69

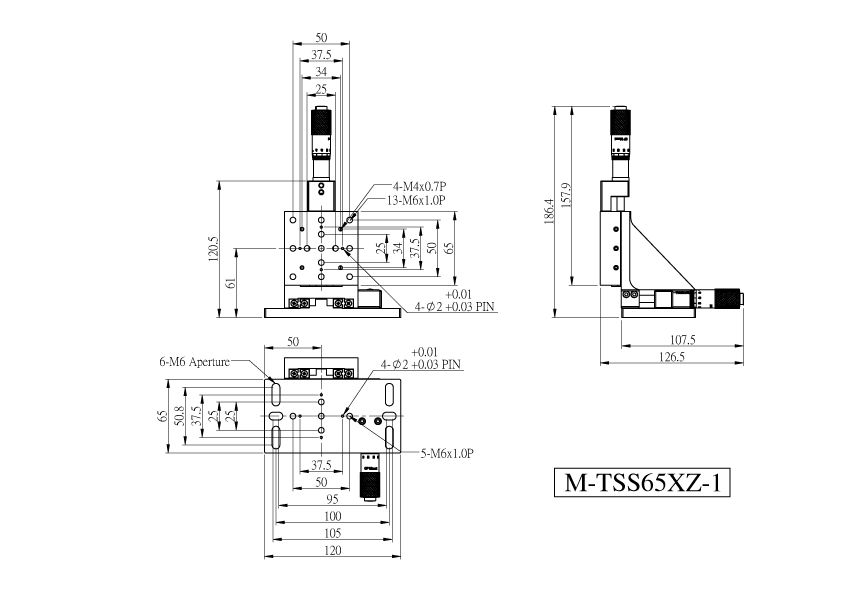

M-TSS65XZ-1

65mmx65mm / 25mm Travel / XZ-axis / Side Driver / 10um Micrometer
In Stock
US$586.21

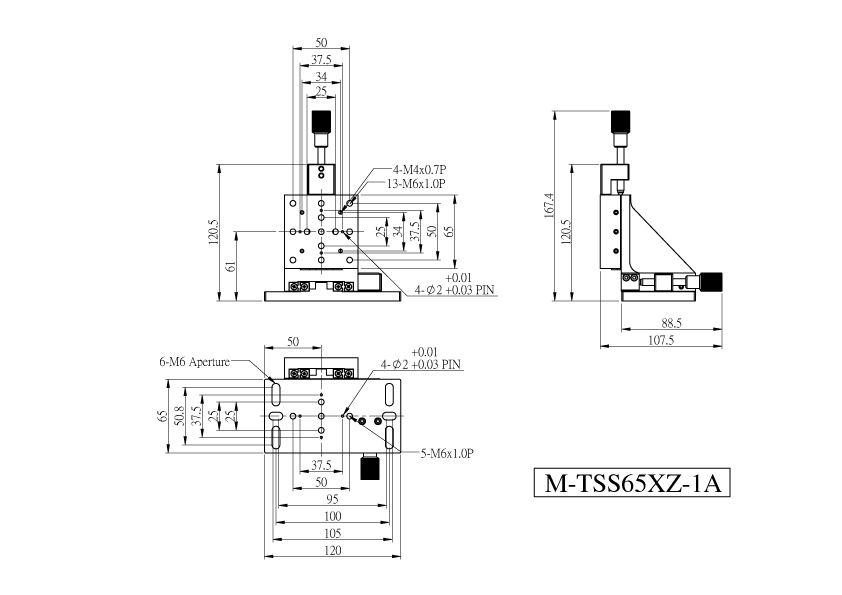

M-TSS65XZ-1A

65mmx65mm / 25mm Travel / XZ-axis / Side Driver / 100 TPI Screws
In Stock
US$544.83

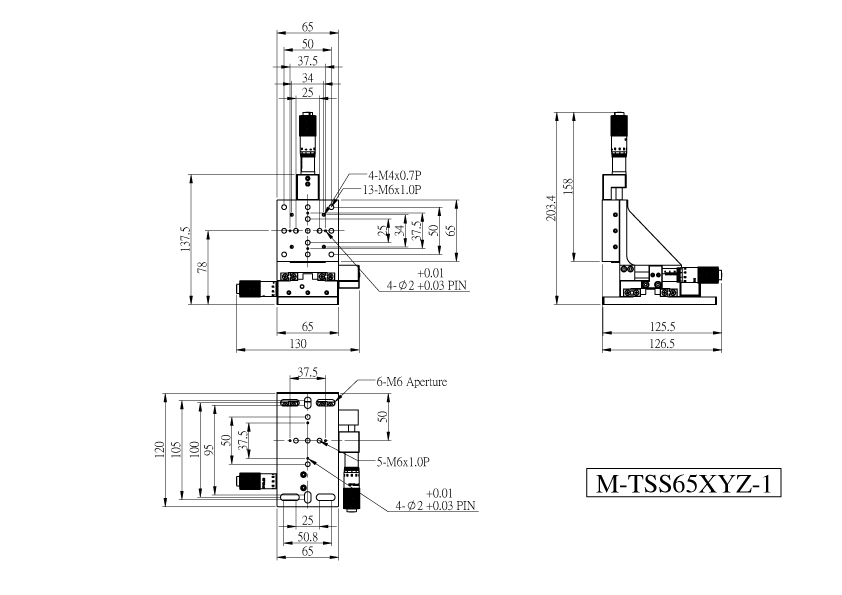

M-TSS65XYZ-1

65mmx65mm / 25mm Travel / XZ-axis / Side Driver / 10um Micrometer
In Stock
US$793.10

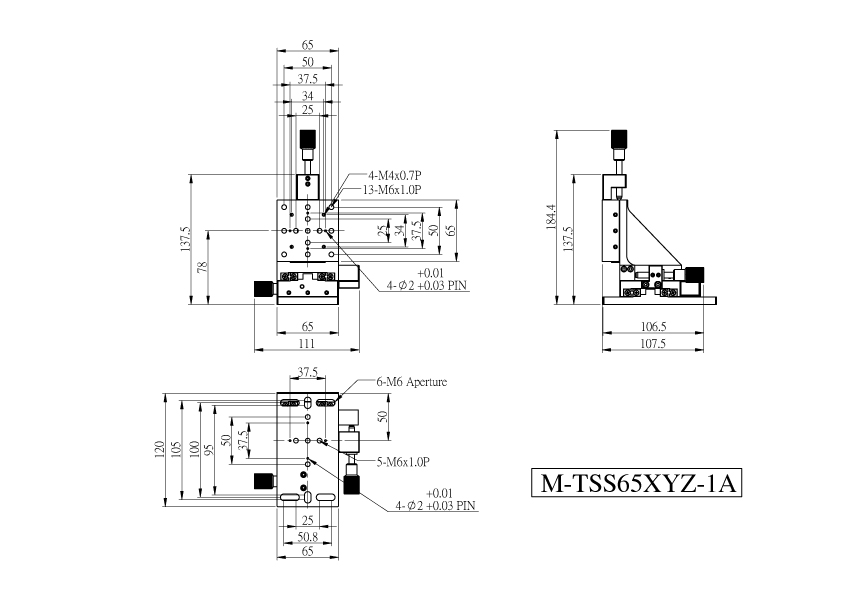

M-TSS65XYZ-1A

65mmx65mm / 25mm Travel / XYZ-axis / Side Driver / 100 TPI Screws
In Stock
US$731.03
