Specification
 • Platform size : 60mm x 60mm
 • Driver Micrometer Center Driver /Adjustment Screw(100TPI)
 • Travel : 13mm
 • Resolution : 10um
 • Material : Aluminum 、Anodized Black
 • Straightness:20um
 • Capacity : 49N(Horizontal Capacity)
2D-Drawing



TCSJ60-05-series

The TCSJ series features a design with steel cross roller tracks, providing high rigidity, heavy load-bearing capacity, low friction, and minimal operational noise. It is well-suited for applications requiring high-precision displacement.

•  Low profile design

•  Choice between precision adjustment screws and side micrometer head

•  Lightweight yet strong aluminum alloy construction

•  Carbon steel cross roller tracks for robust load-bearing capability




Part Number/Description Delivery Price Qty. Add to Cart

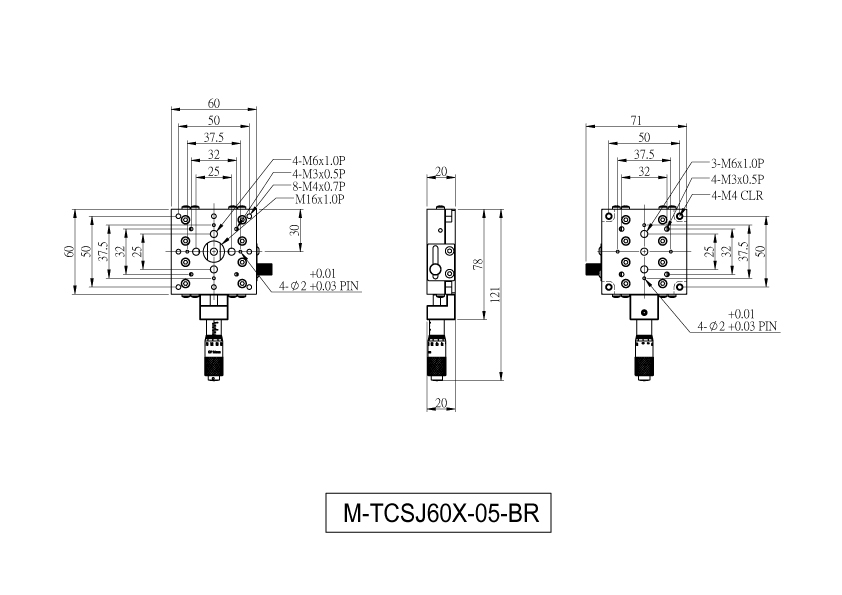

M-TCSJ60X-05-BR

60x60mm / Travel 13mm / X axis horizontal / Right hand / Micrometer Center Driver

In stock
US$186.21
M-TCSJ60X-05A-BR

60x60mm / Travel 13mm / X axis horizontal / Right hand / Adjustment Screw (100TPI)

In stock
US$168.97

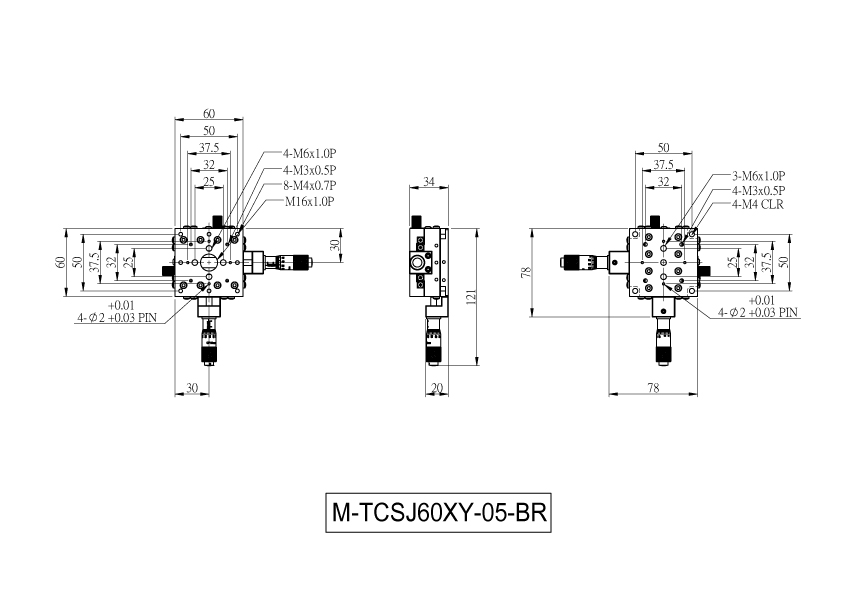

M-TCSJ60XY-05-BR

60x60mm / travel 13mm / XY axis horizontal / Right hand / Micrometer Center Driver

In stock
US$379.31

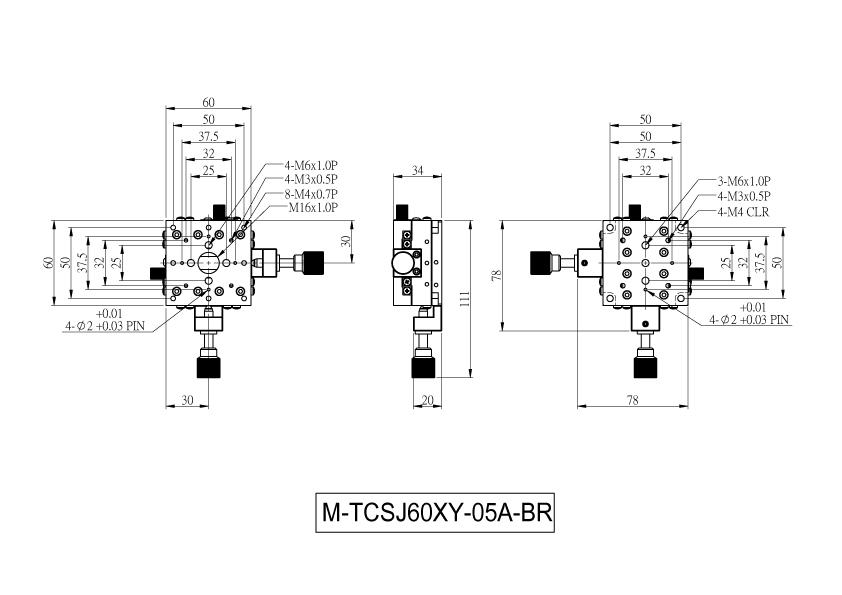

M-TCSJ60XY-05A-BR

60x60mm / travel 13mm / XY axis horizontal / Right hand / Adjustment Screw (100TPI)

In stock
US$341.38
