LTA-75 Series

Optical Vibration Isolators(Over 1.2 meters)


Powerful and stable system, LTA anti-vibration frames can achieve the high load capacity of 1000 kgs and low-frequency suppression. It can be operated in various environments, such as clean rooms(elevated floor), or high floors.
Pendulum suspension air chamber / Three-point Leveling / Steady Flow device design.
Assembly design can be placed in a variety of equipment environment, If the customers are willing to purchase this frame only, we'll provide the adapters to assemble the air support legs.
•Resonant Frequency:1.5-6Hz
•Type of structure can be assembled for convenient transport, with moving pulley
•Customized height and dimensions are available




Part Number/Description Delivery Price Qty. Add to Cart

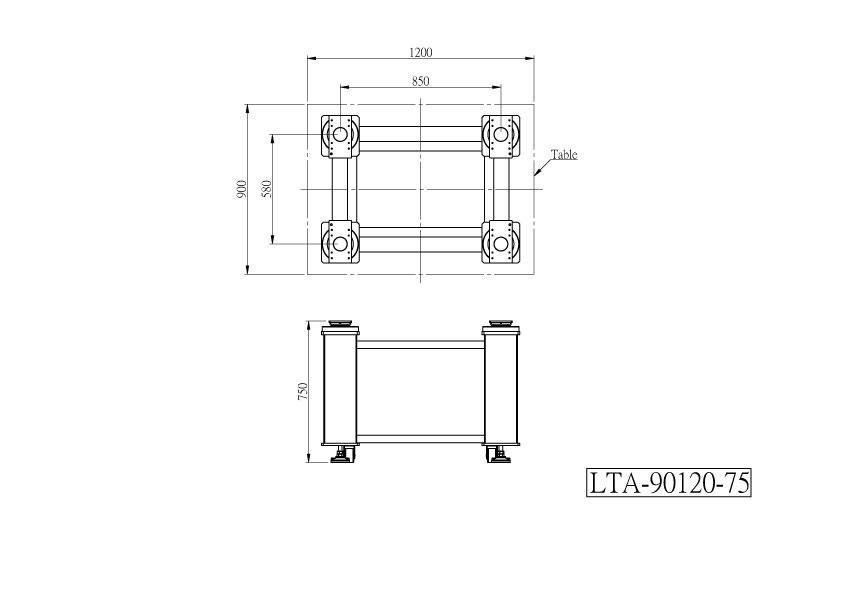

LTA-90120-75

900X1200 mm,750 mm Frame Height

Contact us
US$2789.29

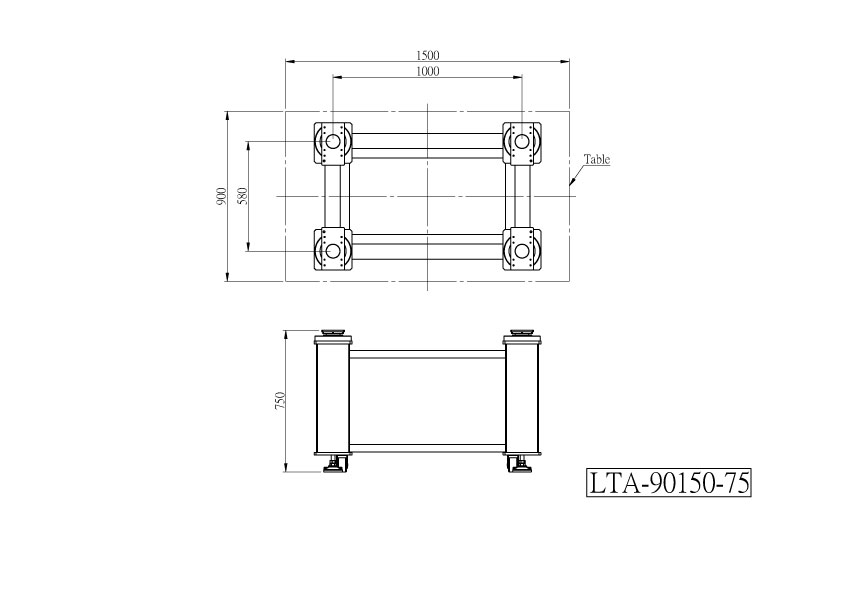

LTA-90150-75

900x1500 mm,750 mm Frame Height

Contact us
US$2785.71

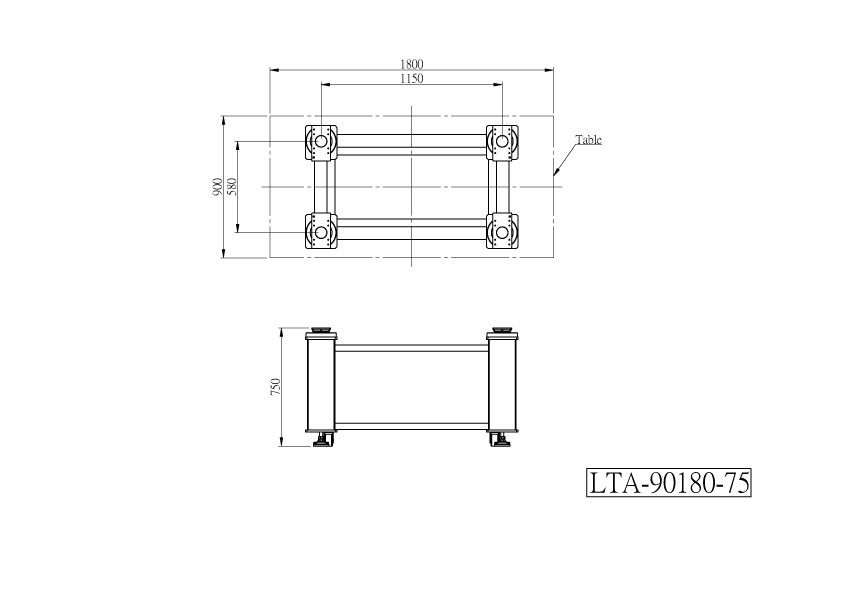

LTA-90180-75

900x1800 mm,750 mm Frame Height

Contact us
US$2857.14

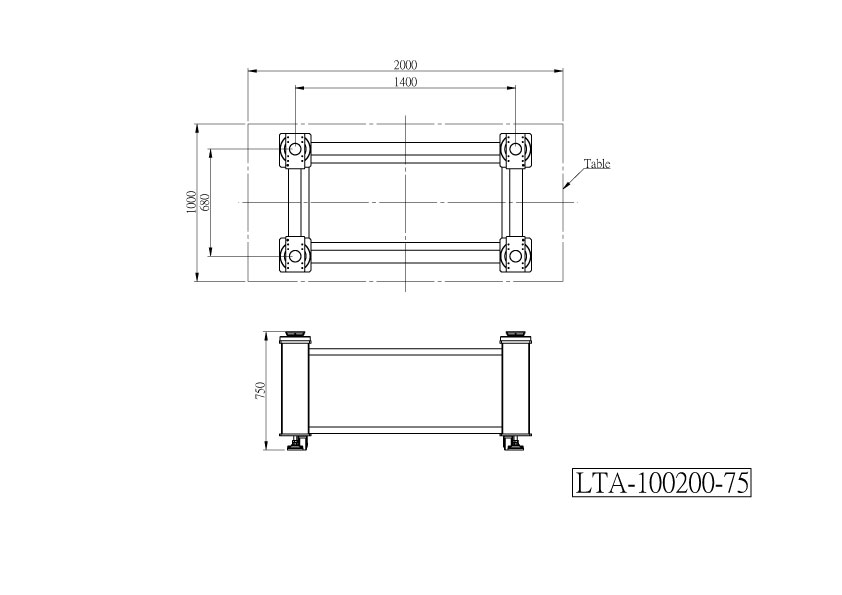

LTA-100200-75

1000x2000 mm,750 mm Frame Height

Contact us
US$2985.71

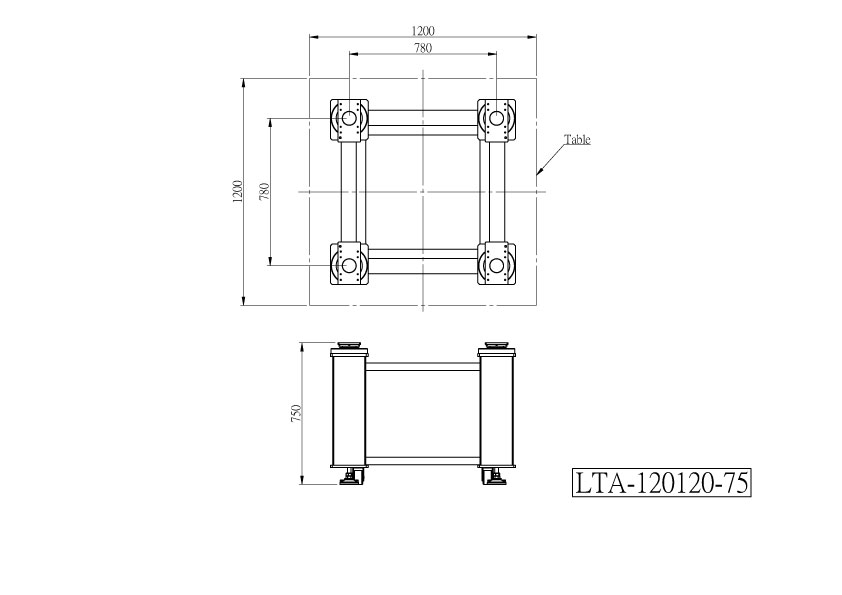

LTA-120120-75

1200x1200 mm,750 mm Frame Height

Contact us
US$2828.57

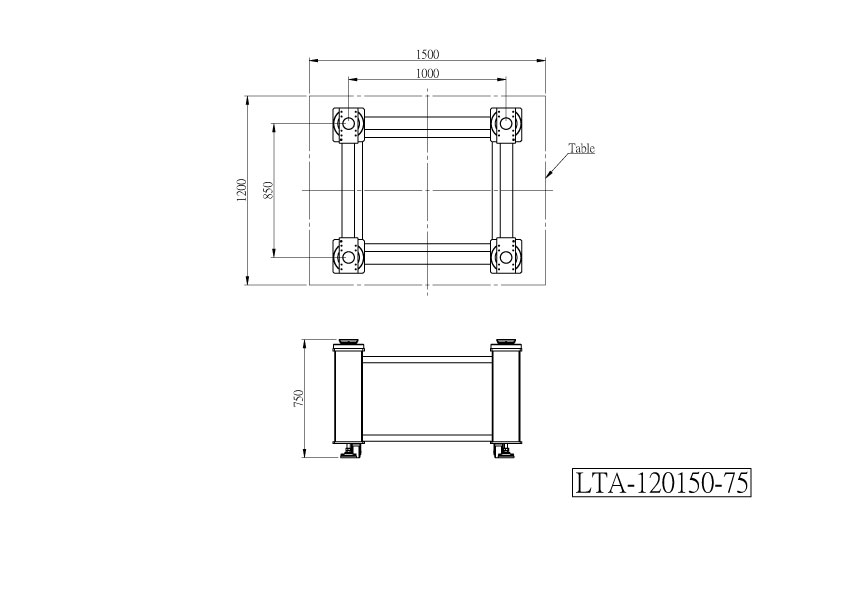

LTA-120150-75

1200x1500 mm,750 mm Frame Height

Contact us
US$2928.57

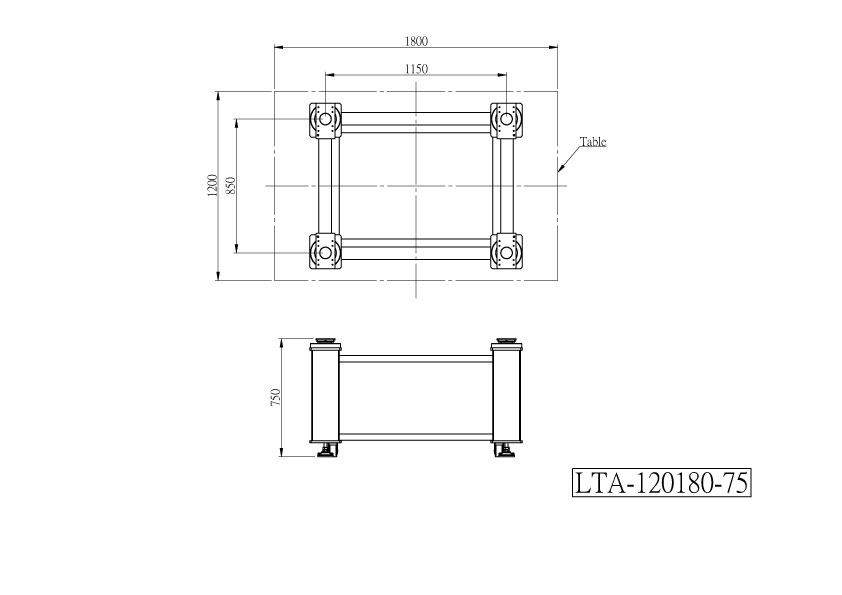

LTA-120180-75

1200x1800 mm,750 mm Frame Height

Contact us
US$2964.29

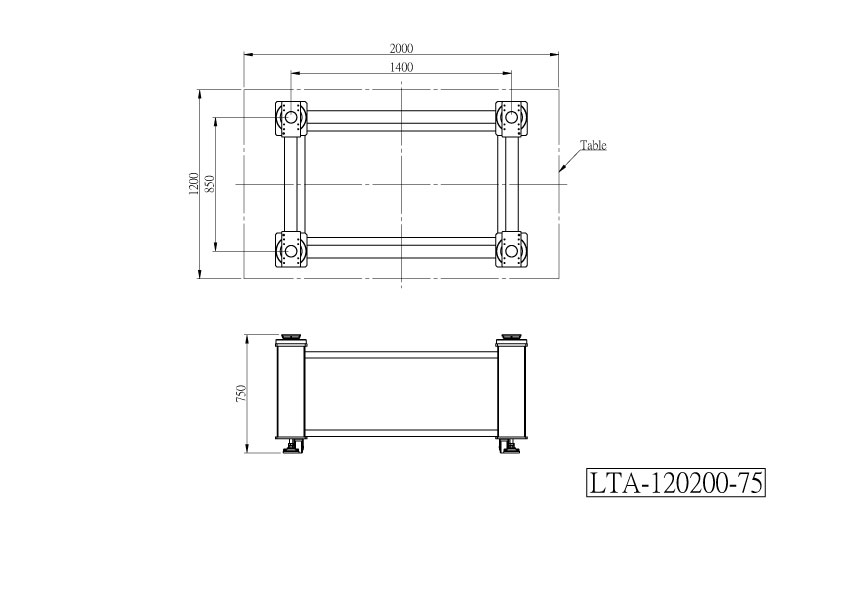

LTA-120200-75

1200x2000 mm,750 mm Frame Height

Contact us
US$3035.71

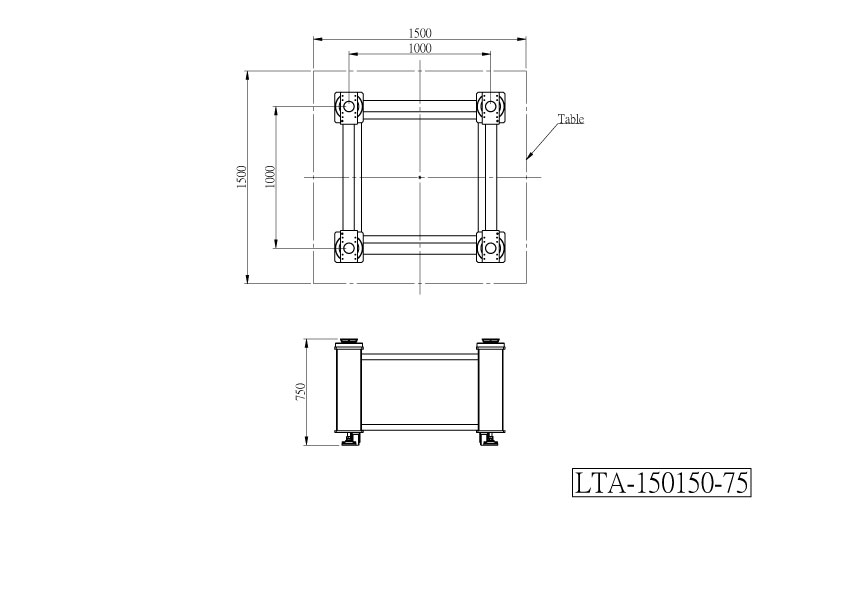

LTA-150150-75

1500x1500 mm,750 mm Frame Height

Contact us
US$2985.71
