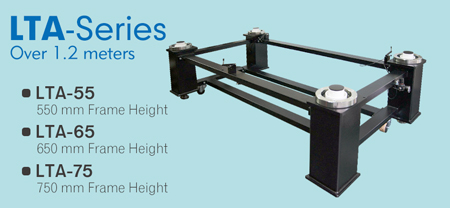

LTA-55 Series

Optical Vibration Isolators(Over 1.2 meters)


Powerful and stable system, LTA anti-vibration frames can achieve the high load capacity of 1000 kgs and low-frequency suppression. It can be operated in various environments, such as clean rooms(elevated floor), or high floors.
Pendulum suspension air chamber / Three-point Leveling / Steady Flow device design.
Assembly design can be placed in a variety of equipment environment, If the customers are willing to purchase this frame only, we'll provide the adapters to assemble the air support legs.
•Resonant Frequency:1.5-6Hz
•Type of structure can be assembled for convenient transport, with moving pulley
•Customized height and dimensions are available




Part Number/Description Delivery Price Qty. Add to Cart

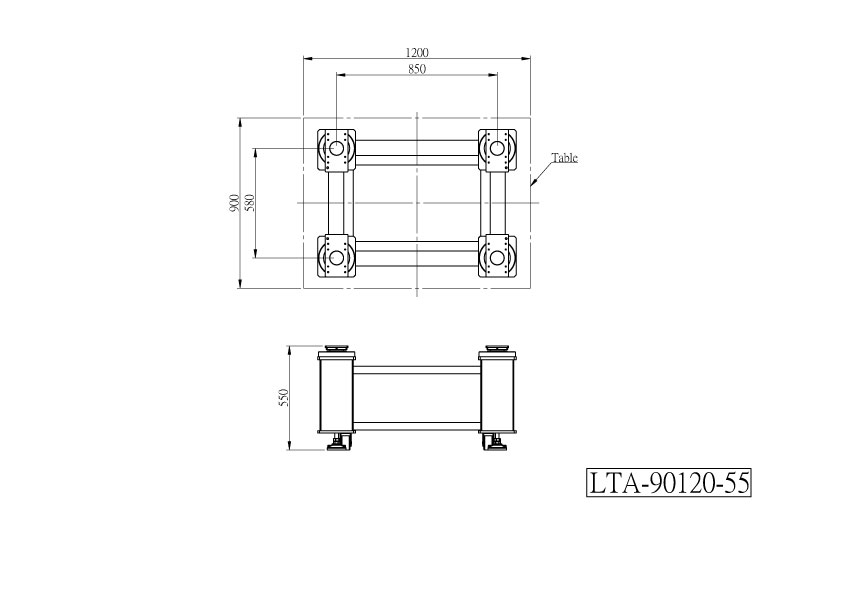

LTA-90120-55

900X1200 mm,550 mm Frame Height

Contact us
US$2710.71

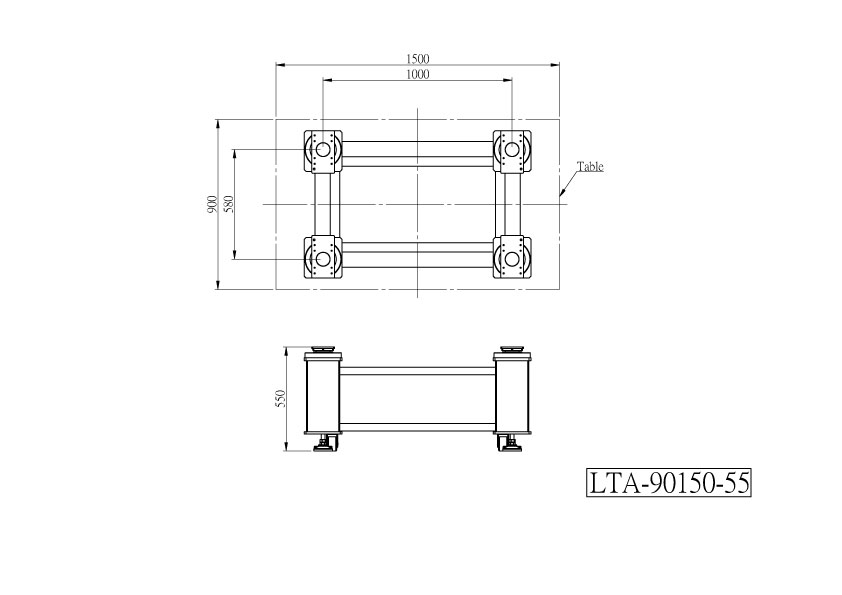

LTA-90150-55

900x1500 mm,550 mm Frame Height

Contact us
US$2750.00

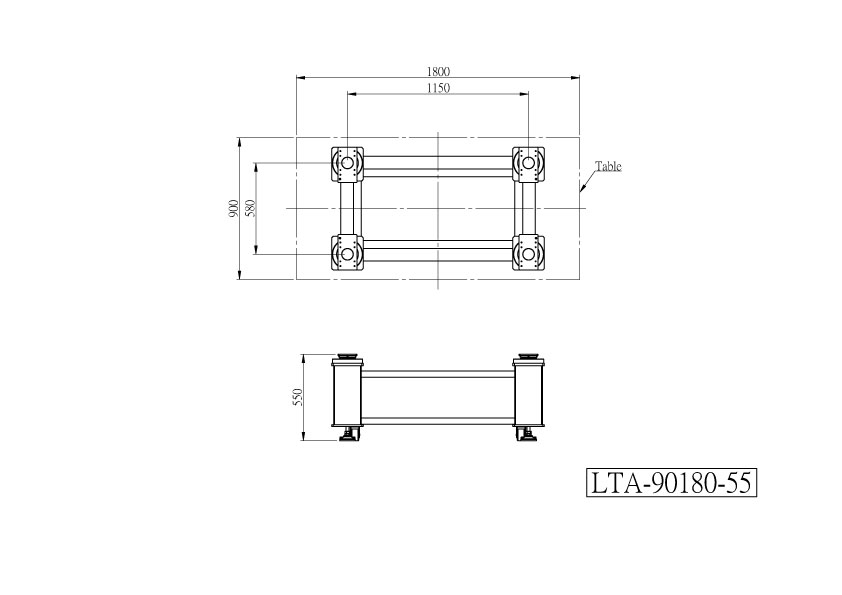

LTA-90180-55

900x1800 mm,550 mm Frame Height

Contact us
US$2857.14

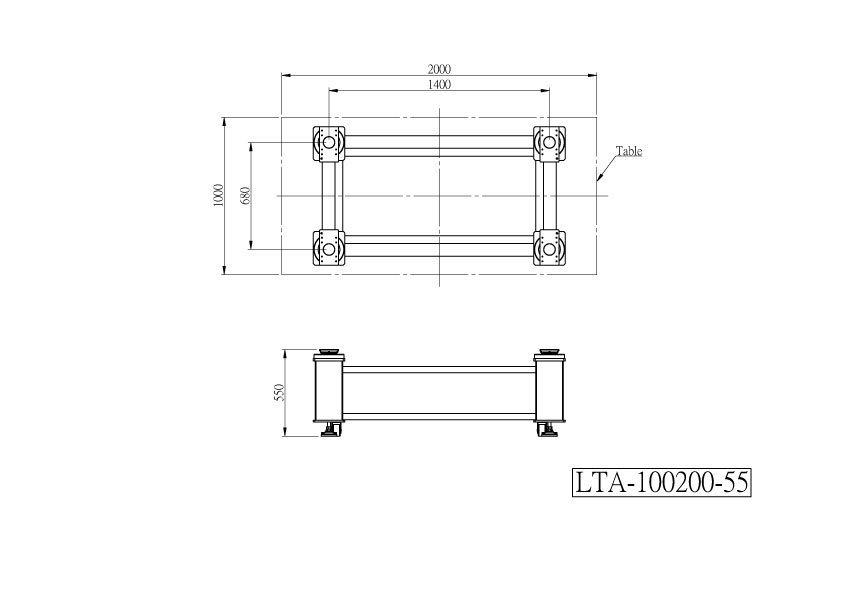

LTA-100200-55

1000x2000 mm,550 mm Frame Height

Contact us
US$2857.14

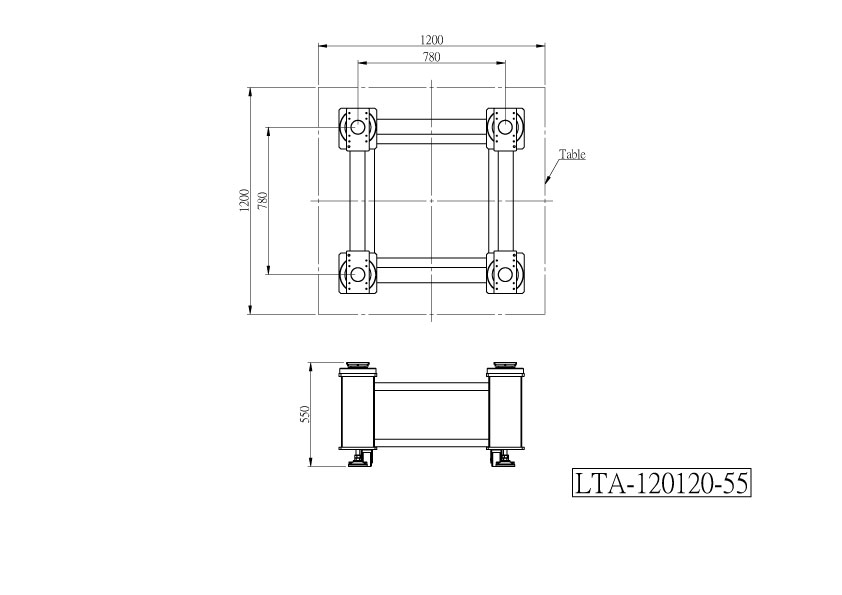

LTA-120120-55

1200x1200 mm,550 mm Frame Height

Contact us
US$2789.29

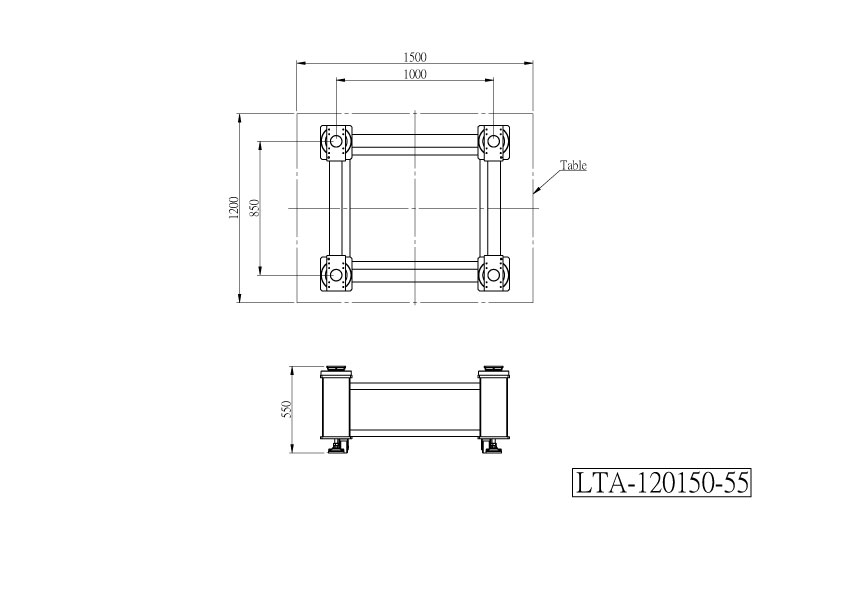

LTA-120150-55

1200x1500 mm,550 mm Frame Height

Contact us
US$2907.14
LTA-120180-55

1200x1800 mm,550 mm Frame Height

Contact us
US$2964.29

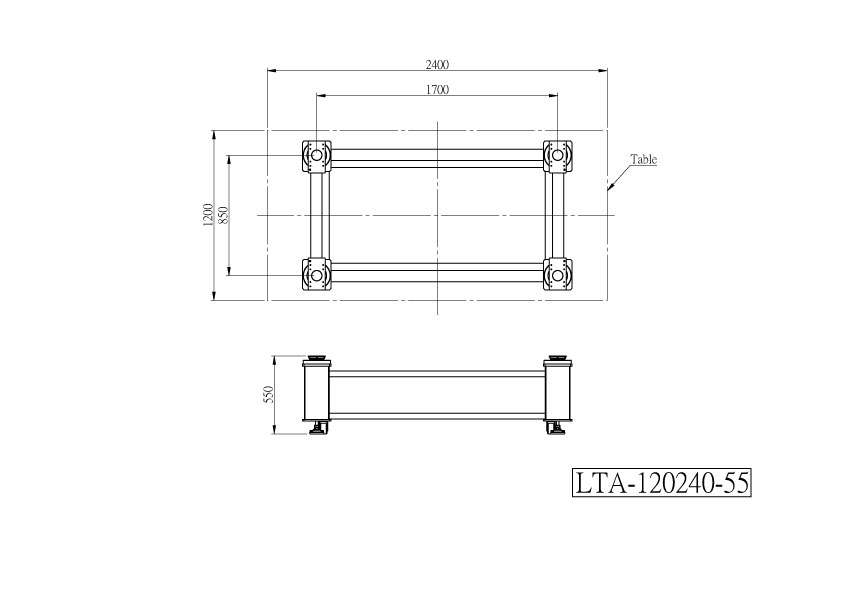

LTA-120240-55

1200x2400 mm,550 mm Frame Height

Contact us
US$2964.29
LTA-120300-55

1200x3000 mm,550 mm Frame Height

Contact us
US$3178.57

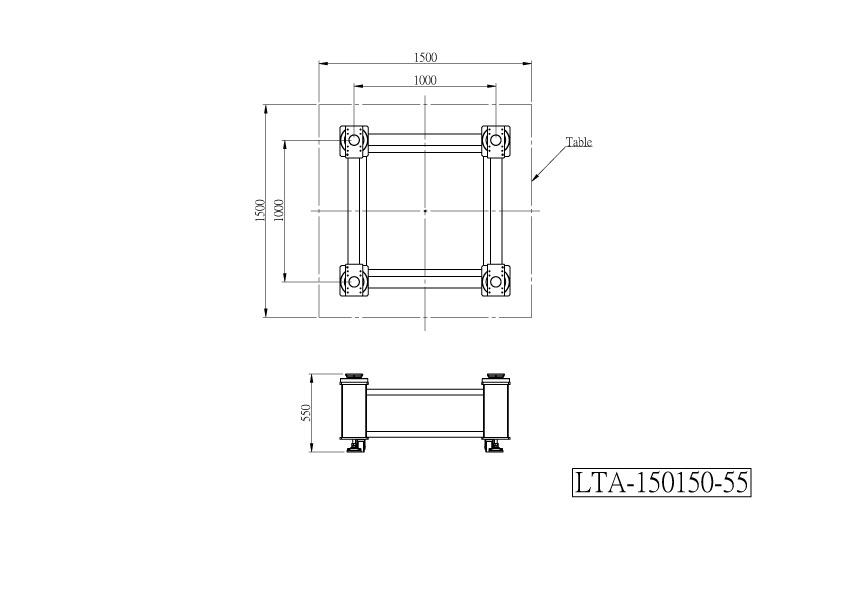

LTA-150150-55

1500x1500 mm,550 mm Frame Height

Contact us
US$2964.29
LTA-150240-55

1500x2400 mm,550 mm Frame Height

Contact us
US$3178.57

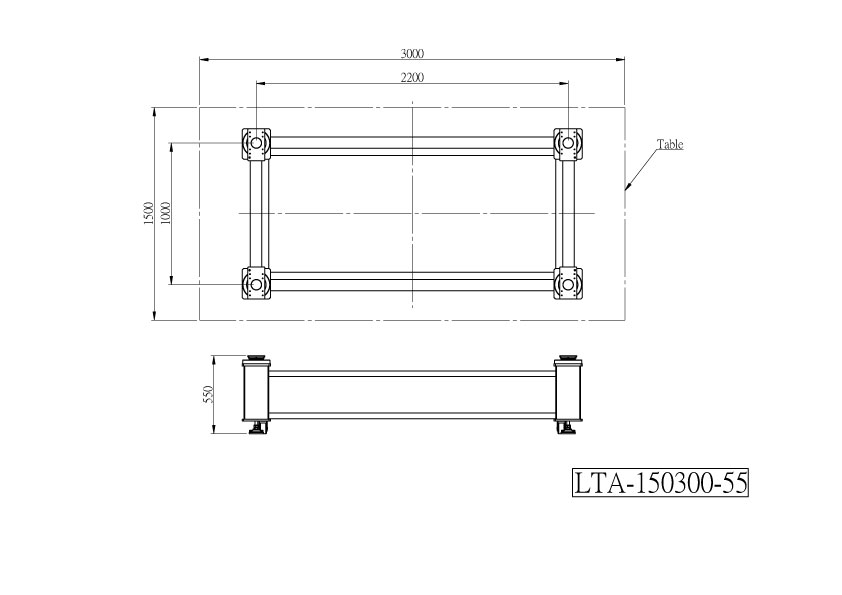

LTA-150300-55

1500x3000 mm,550 mm Frame Height

Contact us
US$3285.71
