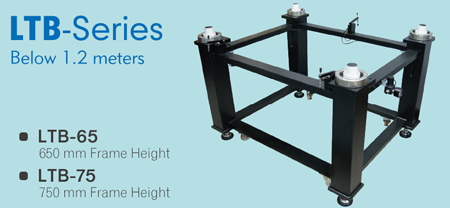

LTB-75-series

Expand	Model	Matches desktop size (mm)	Frame dimensions (mm)	Height (mm)

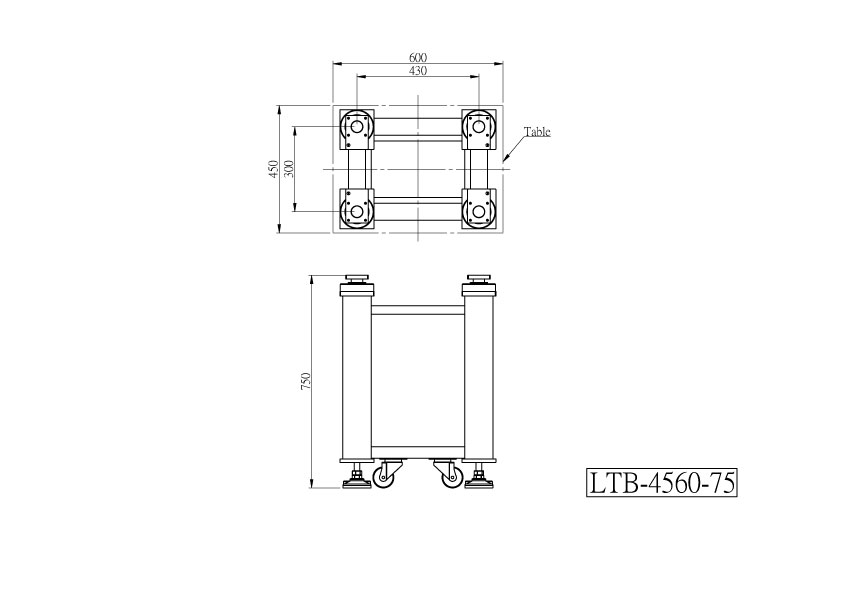

	LTB-4560-75	450x600	420x550	750

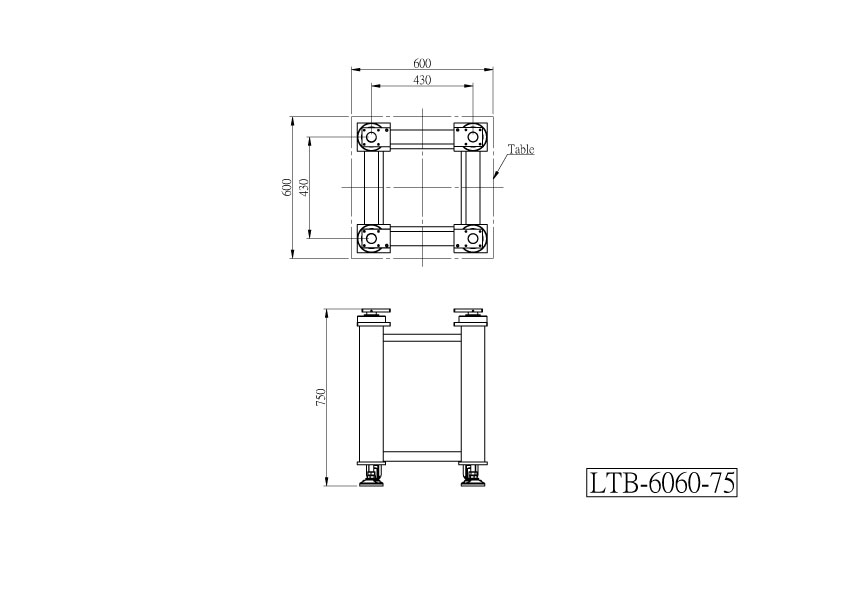

	LTB-6060-75	600x600	550x550	750

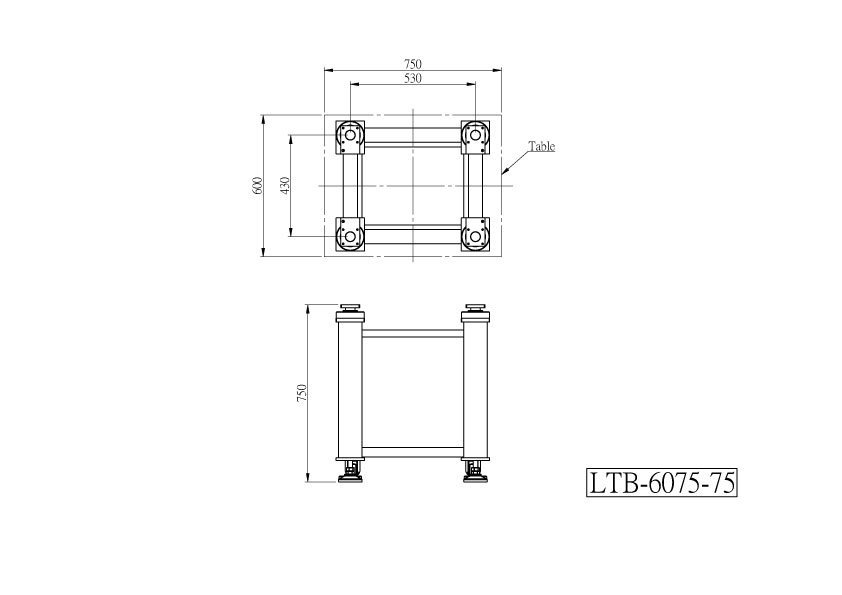

	LTB-6075-75	600x750	550x650	750

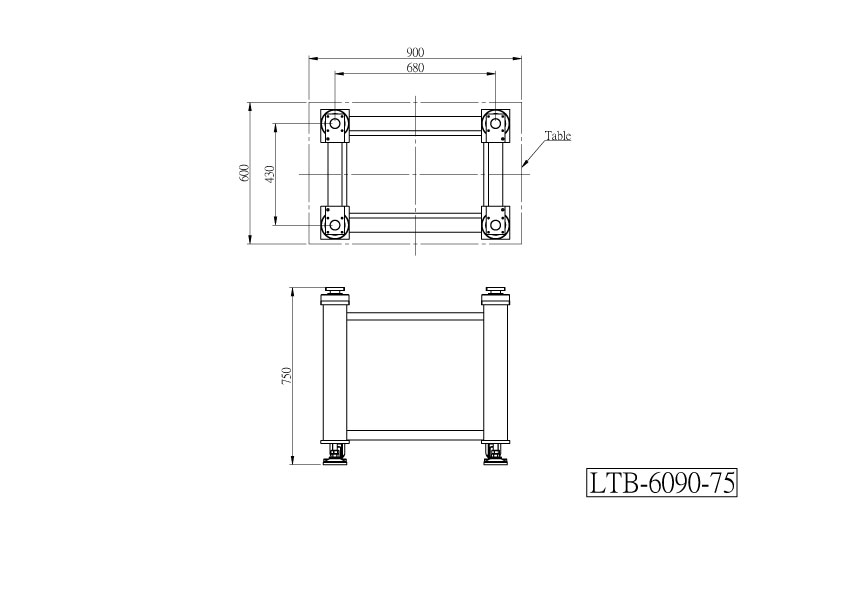

	LTB-6090-75	600x900	550x800	750
	LTB-60120-75	600x1200	550x960	750

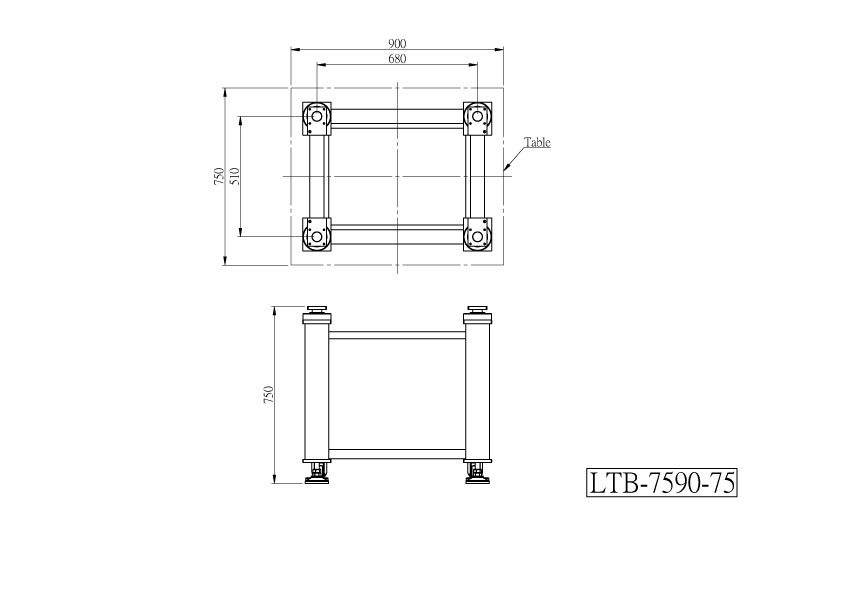

	LTB-7590-75	750x900	630x800	750

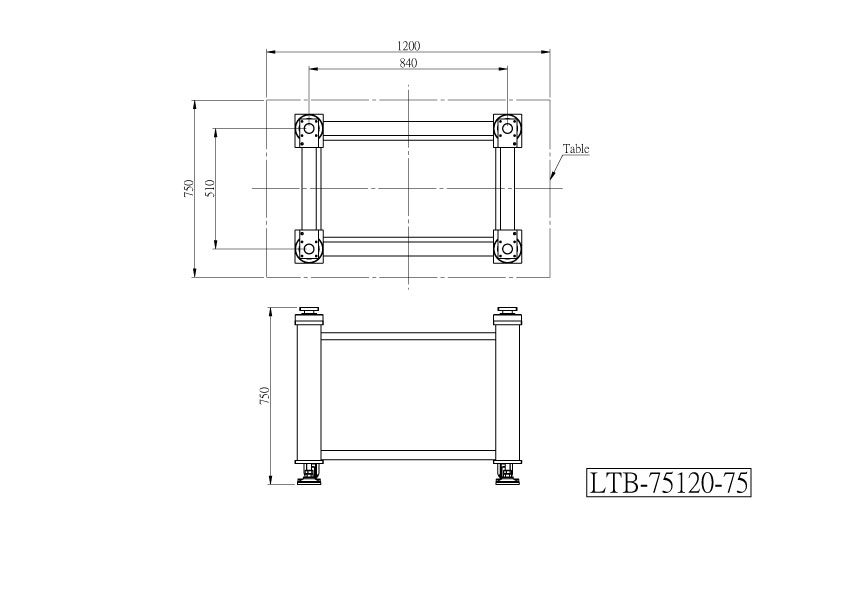

	LTB-75120-75	750x1200	630x960	750

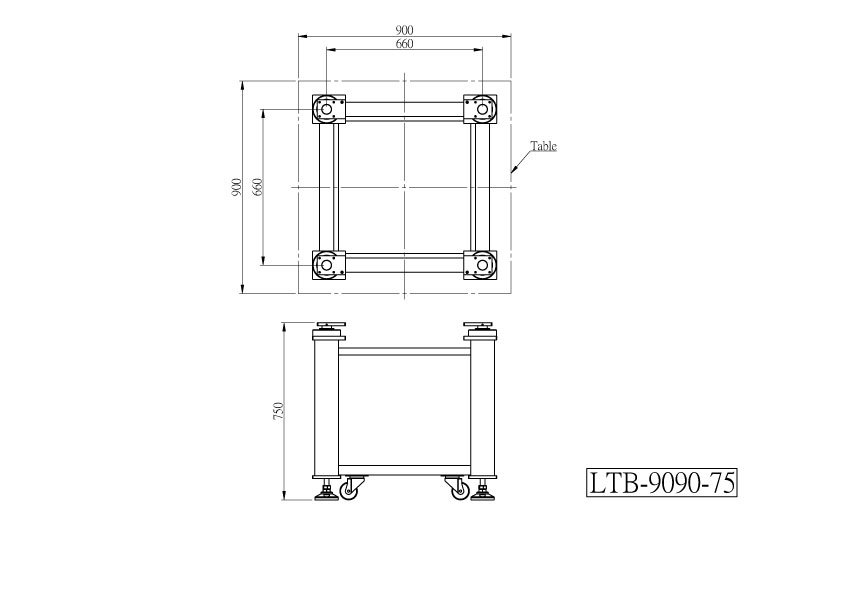

	LTB-9090-75	900x900	780x780	750

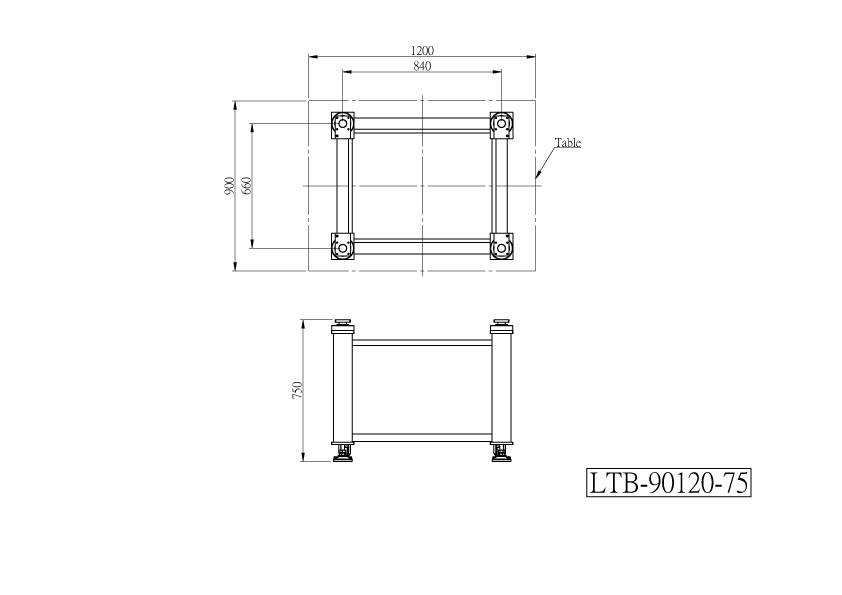

	LTB-90120-75	900x1200	780x960	750

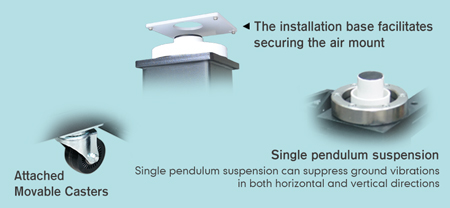

Based on various professional seismic criteria, OP Mount LTB Anti-vibration Foot incorporates an active pendulum suspension system capable of suppressing ground vibrations in both horizontal and vertical directions. Its compact modular design makes it easy to place in various equipment environments. When purchased separately, this type of table leg comes with an installation base to secure the air feet.

• Resonance Frequency: 3-8Hz

• Modular assembly design for easy transport and installation, with built-in casters for mobility

• Customization options available
