Specification
 PartNumber
Length
(cm)
Width
(cm)
T
(cm)
 M-BRS3-6060-10 60 60 10
 M-BRS3-60120-10 60 120 10
 M-BRS3-7590-10 75 90 10
 M-BRS3-75120-10 75 120 10
 M-BRS3-9090-10 90 90 10
 M-BRS3-90120-10 90 120 10
 M-BRS3-120120-10 120 120 10
 M-BRS3-90150-10 90 150 10
 M-BRS3-90180-10 90 180 10
 M-BRS3-120150-10 120 150 10
 M-BRS3-120180-10 120 180 10
 M-BRS3-150150-10 150 150 10
 M-BRS3-100200-10 100 200 10
 M-BRS3-120200-10 120 200 10
 M-BRS3-120240-10 120 240 10

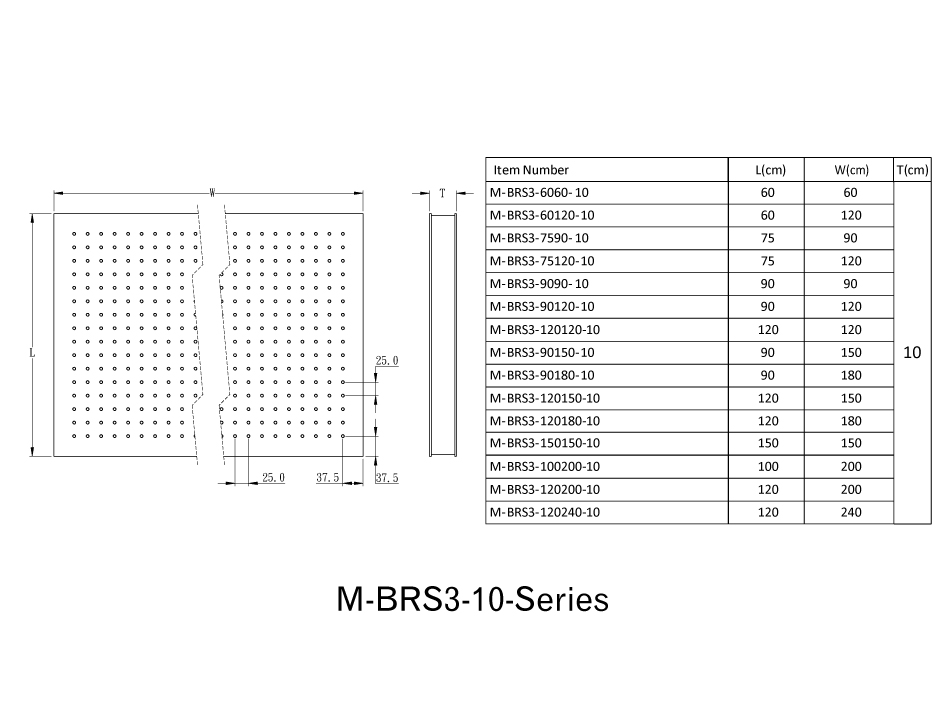

2D-Drawing
Zoom In


Honeycomb Breadboards

BRS3-T10-series

Thickness:10 cm

In a non-magnetic usage environment, we employ SUS304 stainless steel plates with a thickness of 4 millimeters for the BRS series optical platforms. These platforms are designed through the combination of steel plates and metal honeycomb, encompassing various technical indicators such as stress relief, high-strength compression, seismic coefficient comparison, culminating in an integrated structure and comprehensive broadband seismic analysis data. Each platform is subjected to matte surface treatment and grinding control, ensuring a flatness tolerance of 0.1 millimeter per 60 square centimeters.

These platforms feature standard array holes with M6 (1/4-20 threads), with an array hole-to-platform edge distance of 1.5 inches (37.5 millimeters).

• Flatness: 0.1mm/60cm2

• Size Range: 60X60–120X240 cm

• Thickness: 10 cm

Related Products




Part Number/Description Delivery Price Qty. Add to Cart
M-BRS3-6060-10

60x60x(t)10 cm / M6-Tap

Contact us
US$1437.29
M-BRS3-60120-10

60x120x(t)10 cm / M6-Tap

Contact us
US$2120.00
M-BRS3-7590-10

75x90x(t)10 cm / M6-Tap

Contact us
US$1976.27
M-BRS3-75120-10

75x120x(t)10 cm / M6-Tap

Contact us
US$2515.25
M-BRS3-9090-10

90x90x(t)10 cm / M6-Tap

Contact us
US$2371.53
M-BRS3-90120-10

90x120x(t)10 cm / M6-Tap

Contact us
US$2910.51
M-BRS3-90150-10

90x150x(t)10 cm / M6-Tap

Contact us
US$3251.86
M-BRS3-90180-10

90x180x(t)10 cm / M6-Tap

Contact us
US$3485.42
M-BRS3-100200-10

100x200x(t)10 cm / M6-Tap

Contact us
US$3952.54
M-BRS3-120120-10

120x120x(t)10 cm / M6-Tap

Contact us
US$3269.83
M-BRS3-120150-10

120x150x(t)10 cm / M6-Tap

Contact us
US$3593.22
M-BRS3-120180-10

120x180x(t)10 cm / M6-Tap

Contact us
US$4060.34
M-BRS3-120200-10

120x200x(t)10 cm / M6-Tap

Contact us
US$3952.54
M-BRS3-120240-10

120x240x(t)10 cm / M6-Tap

Contact us
US$3952.54
M-BRS3-150150-10

150x150x(t)10 cm / M6-Tap

Contact us
US$3952.54
