IS-series

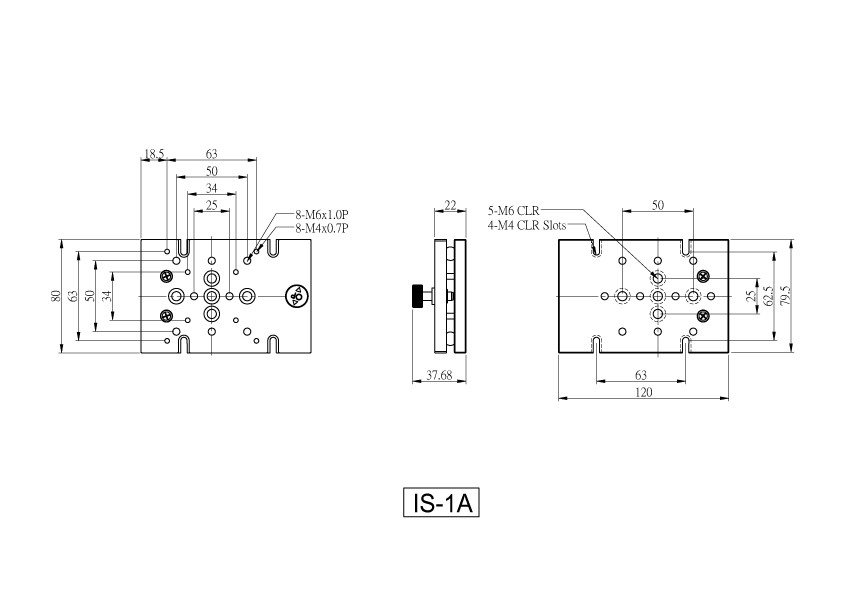

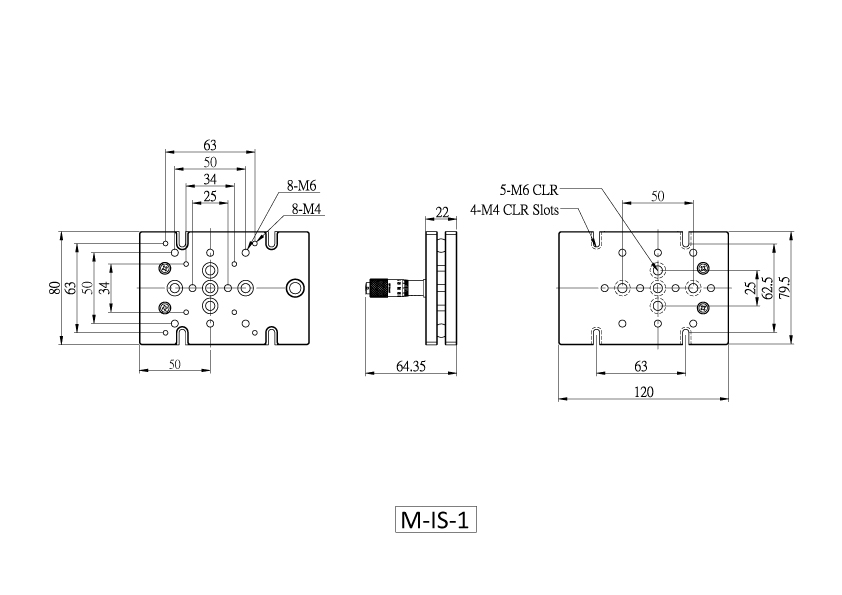

• The IS-1 series provides adjustment in the pitch direction (±3°), with a platform surface size of 80mm x 120mm. The surface is equipped with M6 and M4 threaded holes for compatibility with most components.
• Considering convenience of use, we offer two drive options to choose from: micrometer card and precision screw with 100 threads per inch (TPI).
| Specification |
| Platform Size | Actuators | Travel | Material | Axis |
| 80mm x 120mm |
Micrometer/
100TPI Screw
|
6° | Aluminum 、Anodized Black | θz |
| Products | Part Number/Description | Delivery | Price | Qty. | Add to Cart |
