  5. 5-Phase Closed Loop Stepper Motor(110V/220V )
  6. CTC-5-3-F200-110
CTC-5-3-F200-110

CTC-5-3-F200-110

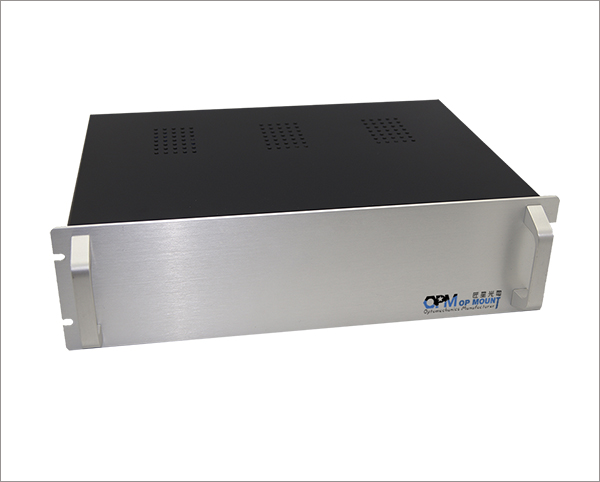

CTC-5-3-F200-110 | (尺寸: 37cm*10cm*26cm)

Pulse Speed :  2MHz
Input Power :  110V
Resolution : 20000 rev
5 Phase Closed-loop Stepper motor Control
3-Channel
Manual :
2D-drawing :



weight : 5KG　　Delivery : Inquiry

Price:US$2576.28

Qty:
　
Add to Cart
Favorites



Male Description Female Description
Pin
 Description Pin Description Pin Description Pin Description
1
 Home(output 0V NPN) 10 5 Phase Motor E (Black) 1 - 10 -
2
 GND 11 - 2 - 11 -
3
 Forward Limit Switch(output 0V NPN) 12 - 3 - 12 Encoder Z+
4
 Reverse Limit Switch(output 0V NPN) 13 - 4 Encoder Z- 13 Encoder B+
5
 Vcc +(24 VDC) 14 - 5 Encoder B- 14 Encoder A+
6 5 Phase Motor A (Blue) 15

6 Encoder A- 15 -
7 5 Phase Motor B (Red)   7 -   -
8 5 Phase Motor C (Orange)   8 5V   -
9 5 Phase Motor D (Green)   9 0V   -



No.1

CTC-Manual

PDF

No.2

2D-Drawing

PDF
