5-JT200-100-C3

5-JT200-100-C3

5-JT200-100-C3 | (尺寸: 200mmX200mm)

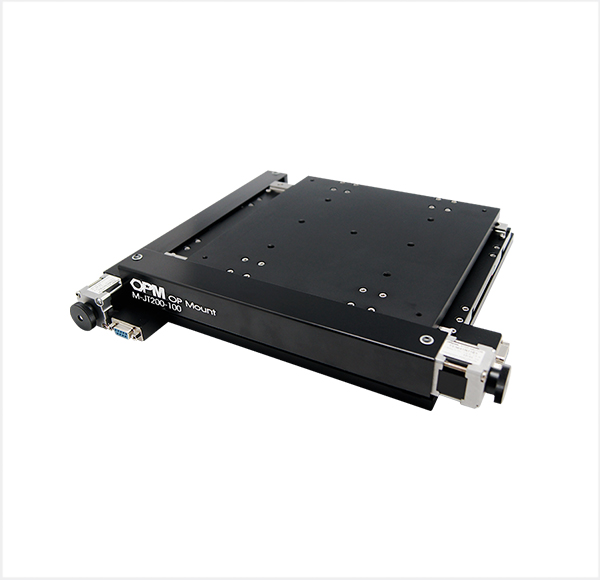

Motorized XY Linear Stage
Platform Size :
200X200mm
Travel Range :
X=100mm,Y=100mm
Resolution 1600 Rev : 0.625um
Positioning Accuracy : 10um @  100mm
5 Phase Stepping Motor
2D drawing :  3D STEP :

weight : 4.3KG  Delivery : Inquiry

Price:US$ Inquiry

Qty:

Item Number 5-JT200-100-C3
Platform Size 200X200mm
Travel Range X=100mm,Y=100mm
Resolution 1600 Rev 0.625um
Positioning Accuracy 10um @  100mm
Repeatability ≤2um
Parallelism 20um
Capacity 20kg
Weight 4.3Kg



No.1

JT200-100

PDF

No.2

JT200-100

STEP


Precautions:

1.Please contact our sales team for ordering Optical Tables and calculating shipping cost.

2.If the weight exceeds 21 kg, please contact us and we will calculate the shipping cost and estimate the delivery date separately.

3.If you're willing to use the ocean shipment, please contact us.

4.If you're ordering more than 50 pcs for one product, please contact us.

5.The checkout amount may be slightly different from the international exchange rate, so you can refer to the exchange rate from the Bank of Taiwan. Website of the Bank of Taiwan: http://rate.bot.com.tw/xrt?Lang=en-US

6.The actual shipping cost might not be totally the same as the estimated shipping cost.
